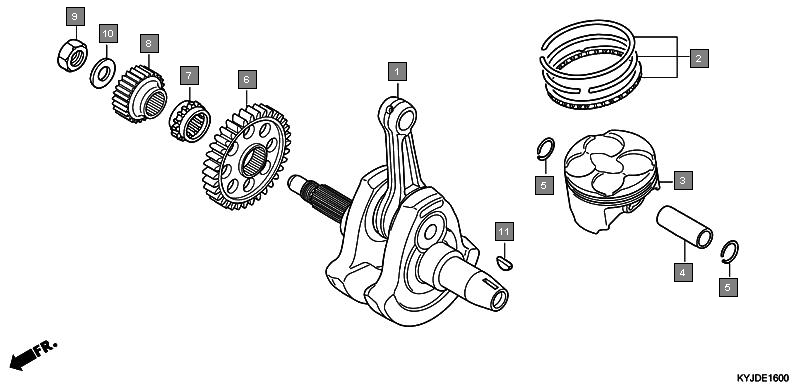

Motorcycles CBR250R CBR250RAG Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 13000KYJ902 CRANKSHAFT COMP. 1
2 13010KYJ305 RING SET, PISTON(STD.) 1
3 13101KYJ900 PISTON(STD.) 1
4 13111MEL000 PIN, PISTON 1
5 13112KYJ900 CLIP, PISTON PIN, 17MM 2
6 13417KYJ900 GEAR, BALANCER DRIVE(34T) 1
7 14311KYJ900 SPROCKET, TIMING(17T) 1
8 23121KYJ900 GEAR, PRIMARY DRIVE(26T) 1
9 90235KPF900 NUT, LOCK, 16MM 1
10 90235KYJ900 NUT, LOCK, 16MM 1
11 90434KPS900 WASHER, 16MM 1
12 90742KYJ900 KEY, WOODRUFF, 25X18 1
