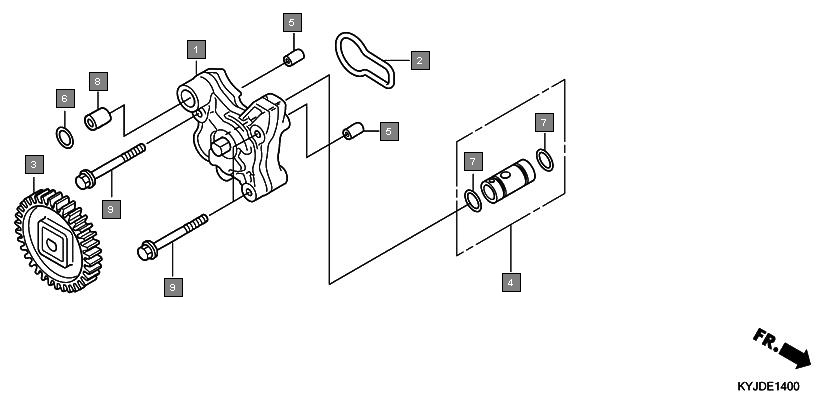

Motorcycles CBR250R CBR250RAG Engine Oil pump
Ref.No. Part No. Description Oty
1 15100KYJ900 PUMP ASSY., OIL 1
2 15119KYJ710 GASKET, OIL PUMP 1
3 15130KYJ900 GEAR COMP., OIL PUMP(32T) 1
4 15220KYJ900 VALVE ASSY., RELIEF 1
5 90702KFM900 DOWEL PIN, 8X12 2
6 91301KYJ710 O-RING, 11.8X1.9 1
7 91301KYJ901 O-RING, 11.8X1.9 2
8 9430112160 PIN A, DOWEL, 12X16 1
9 957010604500 BOLT, FLANGE, 6X45 3
