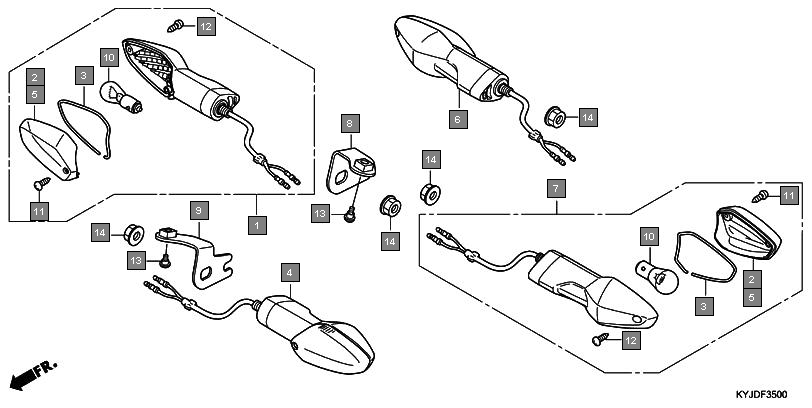

Motorcycles CBR250R CBR250RG Frame Winker
Ref.No. Part No. Description Oty
1 33400KPPN01 WINKER ASSY., R. FR.(12V 21W) 1
2 33402KWF901 LENS, R. WINKER (R. FR./L. RR.) 2
3 33406KWF901 SEAL, GASKET 4
4 33450KPPN01 WINKER ASSY., L. FR.(12V 21W) 1
5 33452KWF901 LENS, L. WINKER (L. FR./R. RR.) 2
6 33600KPPN01 WINKER ASSY., R. RR.(12V 21W) 1
7 33650KPPN01 WINKER ASSY., L. RR.(12V 21W) 1
8 33941KPPT00 STAY COMP., R. WINKER 1
9 33942KPPT00 STAY COMP., L. WINKER 1
10 34905KYJ901 BULB, WINKER(AMBER)(12V 21W) 4
11 34904KTE920 BULB, WINKER(AMBER)(12V 21W)(PY21W) 4
12 90102KYJ901 SCREW, TAPPING, 4X12 4
13 90103KYJ901 SCREW, TAPPING, 4X12 4
14 90133KPPT00 SCREW, PAN, 6X14 2
15 9405010000 NUT, FLANGE, 10MM 4
