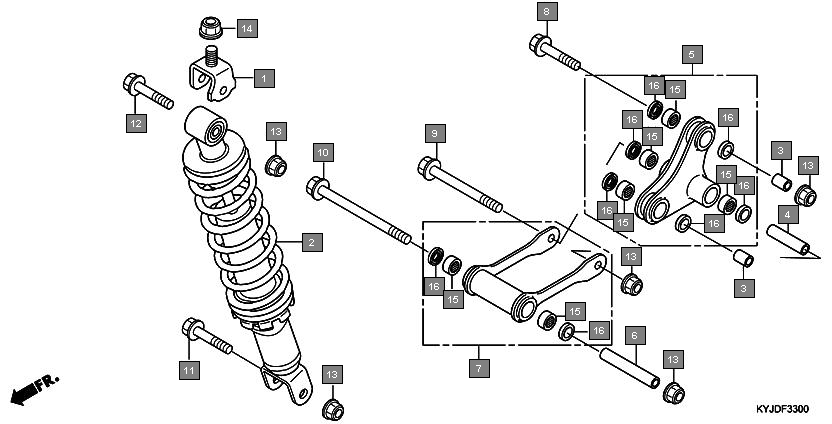

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50175KYJ900 | HOLDER COMP., RR. CUSHION UPPER | 1 |
2 | 52400KYJ711 | CUSHION ASSY., RR. | 1 |
3 | 52463KYJ900 | COLLAR B, CUSHION ARM | 2 |
4 | 52464KYJ900 | COLLAR C, CUSHION ARM | 1 |
5 | 52465KYJ900 | ARM SUB ASSY., CUSHION | 1 |
6 | 52472KYJ900 | COLLAR, CUSHION CONNECTING ROD | 1 |
7 | 52475KYJ900 | ROD SUB ASSY., CUSHION CONNECTING | 1 |
8 | 90101KBS900 | BOLT, FLANGE, 10X65 | 1 |
9 | 90101KYJ900 | BOLT, FLANGE, 10X106 | 1 |
10 | 90104KYJ900 | BOLT, FLANGE, 10X146 | 1 |
11 | 90152KYJ900 | BOLT, FLANGE, 10X55 | 1 |
12 | 90153KYJ900 | BOLT, FLANGE, 10X53 | 1 |
13 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 5 |
14 | 90306KTE911 | NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) | 1 |
15 | 91071KYJ711 | BEARING, NEEDLE, 17X24X17(NRB) | 6 |
16 | 91071MY1005 | BEARING, NEEDLE, 17X24X17 (KOYO) | 6 |
17 | 91262KV3831 | DUST SEAL, 17X24X5(ARAI) | 8 |
