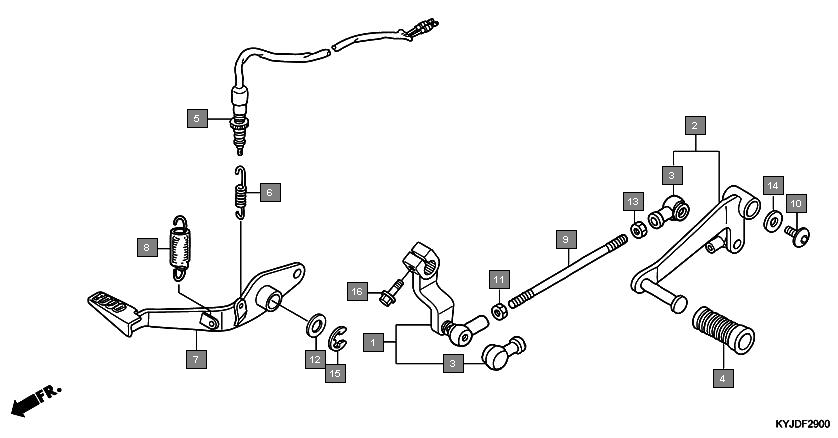

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 24710KYJ000 | ARM COMP., GEAR CHANGE | 1 |
| 2 | 24720KYJ000 | PEDAL COMP., GEAR CHANGE | 1 |
| 3 | 24724MBWD21 | COVER, DUST | 2 |
| 4 | 24781KSP860 | RUBBER, CHANGE PEDAL | 1 |
| 5 | 35350KYJ611 | SWITCH ASSY., RR. STOP | 1 |
| 6 | 35357HP0A00 | SPRING, STOP SWITCH | 1 |
| 7 | 46500KYJ900 | PEDAL COMP., RR. BRAKE | 1 |
| 8 | 46513KYJ900 | SPRING ASSY., BRAKE PEDAL | 1 |
| 9 | 90105KYJ900 | BOLT, TIE ROD | 1 |
| 10 | 90132KPPT00 | SCREW, PAN, 6X10 | 1 |
| 11 | 90301KYJ900 | NUT, SPECIAL, 6MM (LEFTHANDTHREAD) | 1 |
| 12 | 90557230000 | WASHER, 15.2X25 | 1 |
| 13 | 94001060000S | NUT, HEX., 6MM | 1 |
| 14 | 9410306700 | WASHER, PLAIN, 6MM | 1 |
| 15 | 9451115000 | CIRCLIP, EXTERNAL, 15MM | 1 |
| 16 | 957010602007 | BOLT, FLANGE, 6X20 | 1 |
