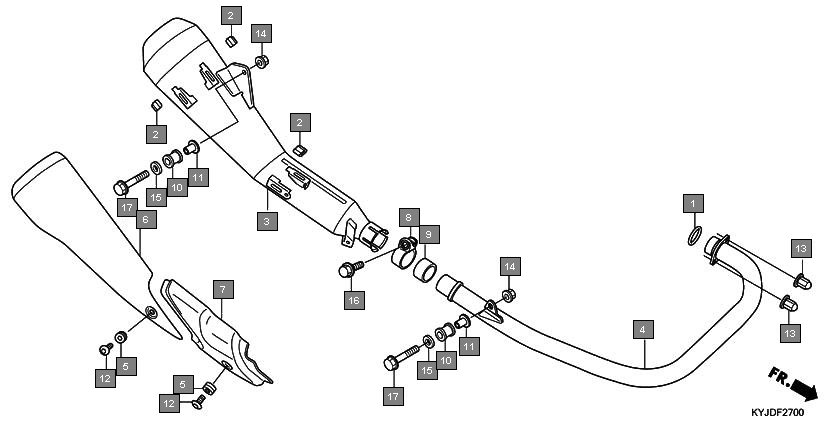

Motorcycles CBR250R CBR250RG Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18291MEB670 GASKET, EX. PIPE 1
2 18293MN0000 RUBBER, PROTECTOR 3
3 18310KYJT00 MUFFLER COMP. 1
4 18320KYJ710 PIPE COMP., EX. 1
5 18345MBT610 RUBBER, PROTECTOR MOUNTING 2
6 18355KYJT00 COVER A, MUFFLER 1
7 18356KYJ900 COVER B, MUFFLER 1
8 18373KYJ900 BAND, MUFFLER 1
9 18392KYJ901 PACKING, MUFFLER 1
10 18421MB0000 RUBBER, MUFFLER MOUNTING 2
11 18422KAF700 COLLAR, MUFFLER MOUNTING 2
12 90113KYJ710 SCREW, PAN, 6X12 2
13 90305KSP900 NUT, EXHAUST PIPE, 8MM 2
14 9405008000 NUT, FLANGE, 8MM 2
15 9410308000 WASHER, PLAIN, 8MM 2
16 957010803802 BOLT, FLANGE, 8X38 1
17 957010805000 BOLT, FLANGE, 8X50 2
