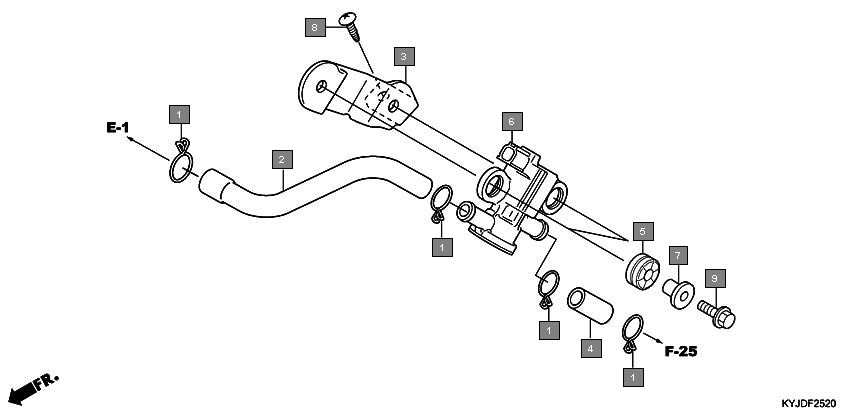

Motorcycles CBR250R CBR250RG Frame Air injection solenoid valve
Ref.No. Part No. Description Oty
1 15772551000 CLIP, BREATHER TUBE 4
2 18613KYJ900 HOSE, AIR INJECTION SOLENOID VALVE 1
3 18652KYJ900 STAY COMP., AIR INJECTION SOLENOID VALVE 1
4 18653KYJ900 TUBE(AISV-AIR CLEANER) 1
5 33115KVK900 RUBBER, HEADLIGHT 2
6 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
7 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
8 9390325280 SCREW, TAPPING, 5X12 1
9 957010602208 BOLT, FLANGE, 6X22 2
10 36450KVK902 VALVE ASSY., AIR INJECTION SOLENOID 1
