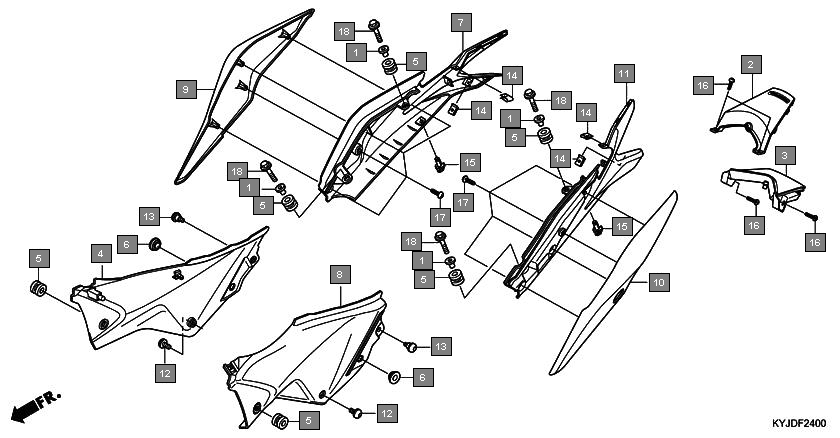

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17232KYJ900 | COLLAR, AIR CLEANER MOUNTING | 4 |
| 2 | 83450KPPT00ZA | COWL SET, RR. CENTER UPPER(WL) *TYPE1* | 1 |
| 3 | 83501KPPT00 | COWL, RR. CENTER LOWER | 1 |
| 4 | 83510KYJ900 | COVER, R. SIDE | 1 |
| 5 | 83545KCJ690 | RUBBER, SIDE COVER | 6 |
| 6 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 2 |
| 7 | 83600KYJ710 | COWL, R. RR. | 1 |
| 8 | 83610KYJ900 | COVER, L. SIDE | 1 |
| 9 | 83620KYJH80ZA | COVER SET, R. RR.(WL)*TYPE3* | 1 |
| 10 | 83620KYJH80ZB | COVER SET, R. RR.(WL)*TYPE2* | 1 |
| 11 | 83620KYJH80ZC | COVER SET, R. RR.(WL)*TYPE1* | 1 |
| 12 | 83630KYJH80ZB | COVER SET, L. RR.(WL)*TYPE2* | 1 |
| 13 | 83630KYJH80ZA | COVER SET, L. RR.(WL)*TYPE3* | 1 |
| 14 | 83630KYJH80ZC | COVER SET, L. RR.(WL)*TYPE1* | 1 |
| 15 | 83700KYJ710 | COWL, L. RR. | 1 |
| 16 | 90132KPPT00 | SCREW, PAN, 6X10 | 2 |
| 17 | 90133KPPT00 | SCREW, PAN, 6X14 | 2 |
| 18 | 90344KTE910 | NUT, CLIP, 4MM | 4 |
| 19 | 90683KPPN00 | CLIP, TRIM | 2 |
| 20 | 9390324380 | SCREW, TAPPING, 4X12 | 4 |
| 21 | 9390325280 | SCREW, TAPPING, 5X12 | 8 |
| 22 | 957010602008 | BOLT, FLANGE, 6X20 | 4 |
