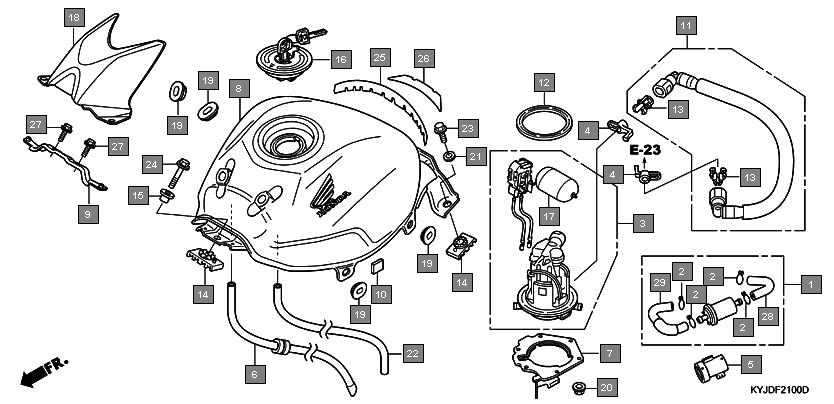

Motorcycles CBR250R CBR250RG Frame Fuel tank
Ref.No. Part No. Description Oty
1 06160KYJ900 FILTER KIT, FUEL 1
2 15771KV6000 CLIP, OIL DRAIN TUBE 4
3 16700KYJ901 PUMP ASSY., FUEL 1
4 16718KTW900 DAMPER A, CONNECTOR 2
5 16912KYJ900 HOLDER, FUEL FILTER 1
6 17418KYJ960 TUBE, FUEL TANK BREATHER 1
7 17507KYJ900 PLATE COMP., SETTING 1
8 17520KYJH80ZA TANK SET, FUEL(WL) *TYPE3* 1
9 17520KYJH80ZB TANK SET, FUEL(WL) *TYPE2* 1
10 17520KYJH80ZC TANK SET, FUEL(WL) *TYPE1* 1
11 17522KPPT00 STAY, TANK LID 1
12 17525KPPT00 RUBBER, FUEL TANK 2
13 17570KYJ901 HOSE COMP., FUEL FEED 1
14 17572KTR941 GASKET, FUEL PUMP 1
15 17577KSSB31 RETAINER(GRAY)(TOKAI) 2
16 17613KPPT00 CUSHION, FUEL TANK 3
17 17614KPPT00 COLLAR, FUEL TANK 1
18 17620KWF901 CAP COMP., FUEL FILLER 1
19 37800KYJ901 FUEL UNIT 1
20 64450KPPT00ZL COVER, FUEL TANK *R321* SPORTS RED 1
21 64450KPPT00ZM COVER, FUEL TANK *NH1* BLACK 1
22 83551300000 GROMMET, AIR CLEANER CASE 6
23 9405006000 NUT, FLANGE, 6MM 6
24 9410306800 WASHER, PLAIN, 6MM 2
25 950058077020 TUBE, 8X770(95005-80001-20M) 1
26 957010601208 BOLT, FLANGE, 6X12 2
27 957010802508 BOLT, FLANGE, 8X25 1
28 17527KPPN00 FILM A,TANK PROTECTOR 1
29 17528KPPN00 FILM B, TANK PROTECTOR 1
30 934010601400 BOLT-WASHER, 6X14 2
31 17541KYJ900 TUBE A, FUEL PUMP 1
32 17542KYJ900 TUBE B, FUEL PUMP 1
