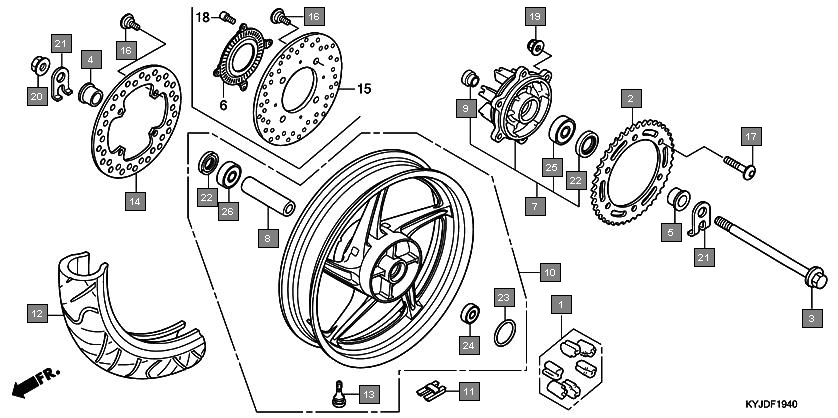

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06410KEA750 | DAMPER SET, WHEEL | 1 |
| 2 | 41201KYJ900 | SPROCKET, FINAL DRIVEN(38T) | 1 |
| 3 | 42301KYJ900 | AXLE, RR. WHEEL | 1 |
| 4 | 42312KYJ900 | COLLAR, R. RR. WHEEL SIDE | 1 |
| 5 | 42313KYJ900 | COLLAR, L. RR. WHEEL SIDE | 1 |
| 6 | 42615KYJT00ZA | FLANGE SUB ASSY., RR. DRIVEN *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 7 | 42620KYJ900 | COLLAR, RR. WHEEL DISTANCE | 1 |
| 8 | 42625MC4000 | COLLAR B, RR. AXLE DISTANCE | 1 |
| 9 | 42650KYJT00ZB | WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 10 | 42704MERD00 | WEIGHT, BALANCE(10G) | 1 |
| 11 | 42705MERD00 | WEIGHT, BALANCE(20G) | 1 |
| 12 | 42706MERD00 | WEIGHT, BALANCE(30G) | 1 |
| 13 | 42711KYJ712 | TIRE, RR.(CONTINENTAL) (140/70-17M/C66S) | 1 |
| 14 | 42711KYJ713 | TIRE, RR.(CONTINENTAL) (140/70-17M/C66S) | 1 |
| 15 | 42711KYJT01 | TIRE, RR.(MRF) (140/70-17M/C66S) | 1 |
| 16 | 42753KWF901 | VALVE, RIM(TRITON) | 1 |
| 17 | 43251KVN971ZD | DISK, RR. BRAKE *NH141M* CYCLONE SILVER METALLIC | 1 |
| 18 | 90105KSP870 | BOLT, DISK, 8X24 | 4 |
| 19 | 90128KYJ900 | BOLT, SPROCKET FIXING | 6 |
| 20 | 90131KYJ910 | BOLT, HEX., 5X8 | 4 |
| 21 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 6 |
| 22 | 90305KYJ711 | NUT, FLANGE, 16MM (PREVAILING TORQUE) | 1 |
| 23 | 90306KCJ951 | NUT, U, 16MM | 1 |
| 24 | 90559KYJ900 | WASHER, RR. SWINGARM | 2 |
| 25 | 91253443761 | DUST SEAL, 30X47X8(ARAI) | 2 |
| 26 | 91302317700 | O-RING, 54X2 | 1 |
| 27 | 91081KYJ711 | BEARING, RADIAL BALL, 6203UU (NEI) | 1 |
| 28 | 961506203010 | BEARING, RADIAL BALL, 6203UU | 1 |
| 29 | 91082KYJ711 | BEARING, RADIAL BALL, 6204UU (NEI) | 1 |
| 30 | 961506204010 | BEARING, RADIAL BALL, 6204UU | 1 |
| 31 | 91083KYJ711 | BEARING, RADIAL BALL, 6303UU (NEI) | 1 |
| 32 | 961506303010 | BEARING, RADIAL BALL, 6303UU | 1 |
