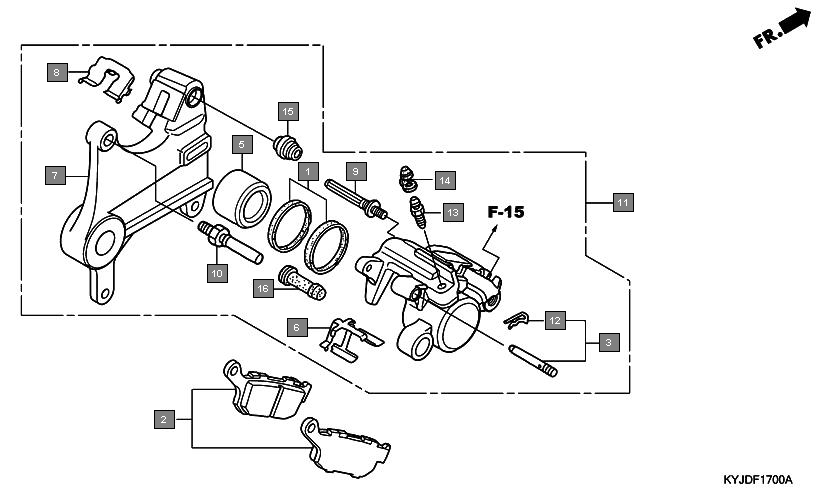

Motorcycles CBR250R CBR250RG Frame Rear brake caliper(cbr250r)
Ref.No. Part No. Description Oty
1 06431MAK003 SEAL SET, PISTON 1
2 06435KYJ711 PAD SET, RR. 1
3 06436KYJ711 PIN SET, HANGER 1
4 43107KYJ711 PISTON 1
5 43108KYJ711 SPRING, PAD 1
6 43110KYJ711 BRACKET, RR. 1
7 43111KYJ711 RETAINER 1
8 43131KYJ711 BOLT, PIN(MAIN) 1
9 43132KYJ711 BOLT, PIN(SUB) 1
10 43150KYJ711 CALIPER SUB ASSY., RR. 1
11 43216KYJ711 CLIP, HANGER PIN 1
12 43352KYJ711 SCREW, BLEEDER 1
13 43353MAK003 CAP, BLEEDER 1
14 43133KYJ711 BOOT, SLIDE(MAIN) 1
15 43134KYJ711 BOOT, SLIDE(SUB) 1
