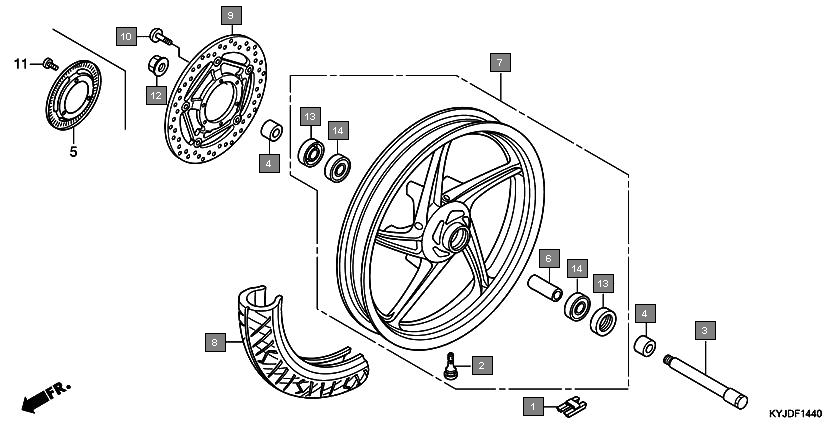

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 42704MERD00 | WEIGHT, BALANCE(10G) | 1 |
2 | 42705MERD00 | WEIGHT, BALANCE(20G) | 1 |
3 | 42706MERD00 | WEIGHT, BALANCE(30G) | 1 |
4 | 42753KWF901 | VALVE, RIM(TRITON) | 1 |
5 | 44301KYJ900 | AXLE, FR. WHEEL | 1 |
6 | 44311KYJ900 | COLLAR, FR. WHEEL | 2 |
7 | 44620KYJ900 | COLLAR, FR. AXLE DISTANCE | 1 |
8 | 44650KYJ710ZB | WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
9 | 44711KYJ712 | TIRE, FR.(CONTINENTAL) (110/70-17M/C 54S) | 1 |
10 | 44711KYJ713 | TIRE, FR.(CONTINENTAL) (110/70-17M/C 54S) | 1 |
11 | 44711KYJT01 | TIRE, FR.(MRF) (110/70-17M/C 54S) | 1 |
12 | 45120KYJ711 | DISK COMP., R. FR. BRAKE | 1 |
13 | 90106KGH600 | BOLT, BRAKE DISK, 6X17 | 6 |
14 | 90306KTE911 | NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) | 1 |
15 | 91252MC7003 | DUST SEAL, 22X42X7(ARAI) | 2 |
16 | 961506302010 | BEARING, RADIAL BALL, 6302UU | 2 |
