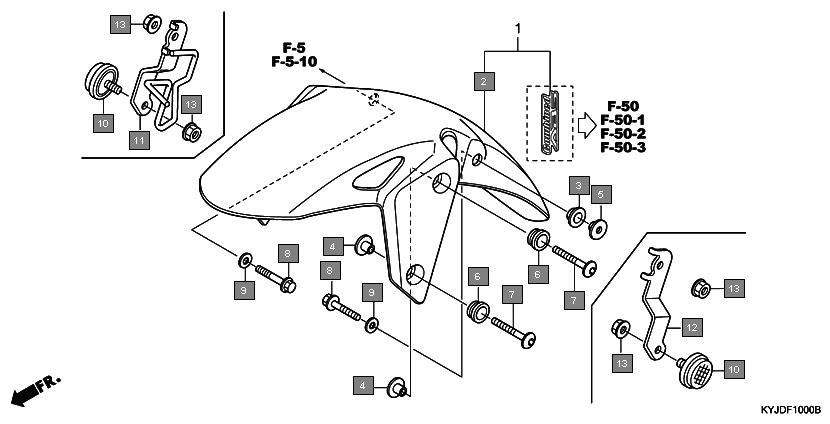

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 61100KPPT00ZK | FENDER, FR. *R321* SPORTS RED | 1 |
2 | 61100KPPT00YE | 61100-KPP-T00YE FENDER, FR. | 1 |
3 | 61100KPPT00ZL | FENDER, FR. *NH1* BLACK | 1 |
4 | 61103KPF910 | RUBBER, FR. FENDER MOUNTING | 2 |
5 | 61103KRY900 | COLLAR A, FR. FENDER | 4 |
6 | 61105KPF910 | COLLAR, FR. FENDER MOUNTING | 2 |
7 | 61105KRY900 | RUBBER, FR. FENDER MOUNTING | 4 |
8 | 90130KYJ900 | SCREW, PAN, 6X22 | 4 |
9 | 960010603500 | BOLT, FLANGE, 6X35 | 2 |
10 | 90485286000 | WASHER, 6MM | 2 |
11 | 33740KTE601 | REFLECTOR, FR. SIDE REFLEX | 2 |
12 | 60114KYJT00 | STAY COMP., R. FR. SIDE REFLECTOR | 1 |
13 | 60115KYJT00 | STAY COMP., L. FR. SIDE REFLECTOR | 1 |
14 | 90302KTE911 | NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) | 4 |
