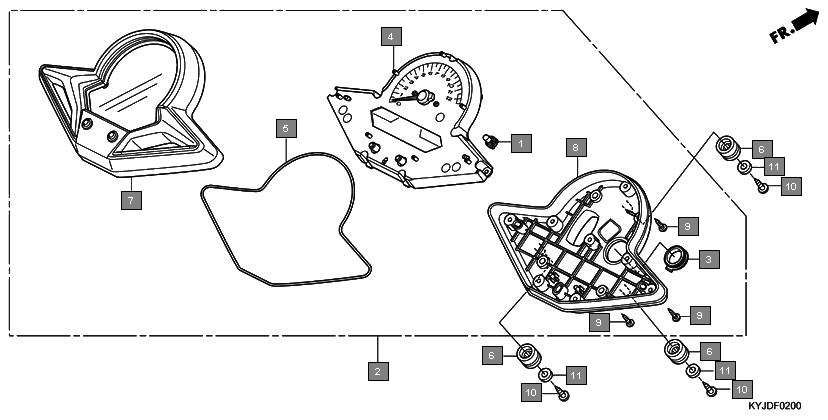

Motorcycles CBR250R CBR250RG Frame Meter
Ref.No. Part No. Description Oty
1 35505KPPT01 BULB & SOCKET ASSY.(12V 1.7W) 1
2 37100KYJ712 METER ASSY., COMBINATION(KPH) 1
3 37105KPPT01 CAP 1
4 37110KYJ712 METER ASSY., SPEED & TACHO &FUEL 1
5 37180KPPT01 GASKET 1
6 37244KVK900 RUBBER, METER MOUNTING 3
7 37610KYJ901 CASE ASSY., UPPER 1
8 37620KYJ901 CASE ASSY., UNDER 1
9 9390322480 SCREW, TAPPING, 3X16 8
10 9391325380 SCREW, TAPPING, 5X14(PO) 3
11 9410305700 WASHER, PLAIN, 5MM 3
