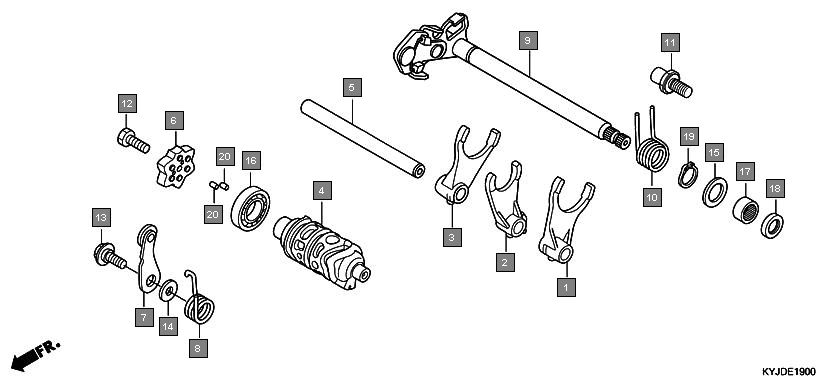

Motorcycles CBR250R CBR250RG Engine Gearshift drum
Ref.No. Part No. Description Oty
1 24211KYJ900 FORK, L. GEARSHIFT 1
2 24212KYJ900 FORK, CENTER GEARSHIFT 1
3 24213KYJ900 FORK, R. GEARSHIFT 1
4 24301KYJ900 DRUM, GEARSHIFT 1
5 24321KYJ900 SHAFT, GEARSHIFT FORK 1
6 24410KYJ900 PLATE COMP., GEARSHIFT DRUM STOPPER 1
7 24430KGH901 STOPPER COMP., GEARSHIFT DRUM 1
8 24435KYJ900 SPRING, DRUM STOPPER 1
9 24610KYJ900 SPINDLE COMP., GEARSHIFT 1
10 24651KRM840 SPRING, GEARSHIFT RETURN 1
11 24652KRM840 PIN, SHIFT RETURN SPRING 1
12 90003KVS900 BOLT, HEX., 6X20 1
13 90022KRM840 PIVOT, SHIFT DRUM STOPPER ARM 1
14 90435HB3000 WASHER, 6.1MM 1
15 90457KRM840 WASHER, 14MM 1
16 91001KYJ711 BEARING, RADIAL BALL, 6905 1
17 91108KYJ711 BEARING, NEEDLE, 14X20X12 1
18 91203KSP911 OIL SEAL, 14X22X5(ARAI) 1
19 9451014000 CIRCLIP, EXTERNAL, 14MM 1
20 9622030085 ROLLER, 3X8.5 2
