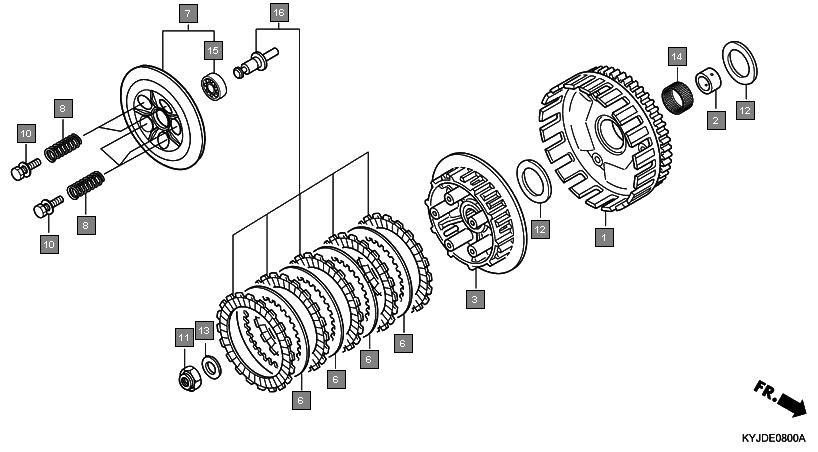

Motorcycles CBR250R CBR250RG Engine Clutch
Ref.No. Part No. Description Oty
1 22100KYJ711 OUTER COMP., CLUTCH(18T) 1
2 22116KYJ900 GUIDE, CLUTCH OUTER 1
3 22121KYJ711 CENTER, CLUTCH 1
4 22321ML7000 PLATE, CLUTCH 4
5 22350KYJ711 PLATE COMP., CLUTCH PRESSURE 1
6 22401KYJ711 SPRING, CLUTCH 5
7 90050KYJ711 BOLT-WASHER, 6X25 5
8 90201KCZ010 NUT, SPECIAL, 16MM 1
9 90201KYJ900 NUT, SPECIAL, 16MM 1
10 90404KVK900 WASHER, 20X40X2 2
11 90434KPS900 WASHER, 16MM 1
12 91012KYJ711 BEARING, NEEDLE, 28X33X16.8 1
13 961006001000 BEARING, RADIAL BALL, 6001 1
14 22847KYJ305 PIN SET, CLUTCH LIFTER 1
15 22847KYJ315 PIN SET, CLUTCH LIFTER 1
