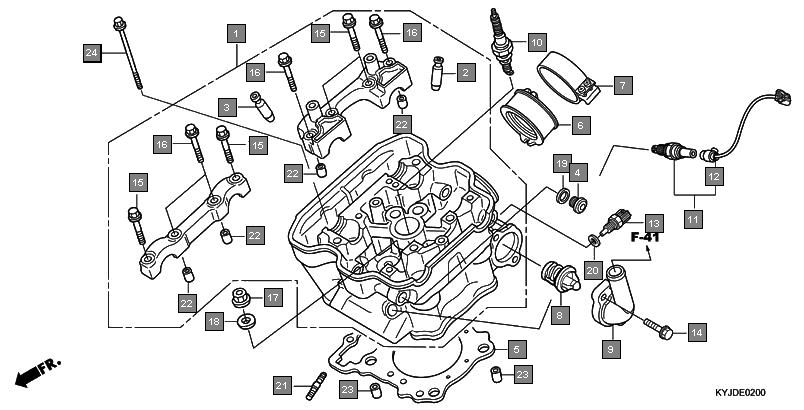

Motorcycles CBR250R CBR250RG Engine Cylinder head
Ref.No. Part No. Description Oty
1 12010KYJ960 HEAD ASSY., CYLINDER 1
2 12204KYJ305 GUIDE, IN. VALVE(O.S.) 2
3 12205KYJ305 GUIDE, EX. VALVE(O.S.) 2
4 12207KYJ900 BOLT, SEALING, 12MM 2
5 12251KYJ901 GASKET, CYLINDER HEAD 1
6 16211KYJ710 INSULATOR, THROTTLE BODY 1
7 16217KYJ900 BAND, INSULATOR 1
8 19300KGF911 THERMOSTAT 1
9 19321KYJ900 COVER, THERMOSTAT 1
10 31916MEH003 PLUG, SPARK(SIMR8A9)(NGK) 1
11 36532KYJ901 SENSOR, OXYGEN 1
12 36533KYJ900 CORD COMP., OXYGEN SENSOR 1
13 37870KRJ901 SENSOR ASSY., WATER TEMP 1
14 90011KYJ900 BOLT, FLANGE, 6X22(NSHF) 2
15 90017KYJ900 BOLT, FLANGE, 6X32 4
16 90019KYJ900 BOLT, FLANGE, 6X39.5 4
17 90204634000 NUT, FLANGE, 10MM 4
18 90410GCC000 WASHER, 10MM 4
19 90418KYJ900 WASHER, 12.2X17X1.5 2
20 90454MC7000 WASHER, SPECIAL, 12MM 1
21 92900080223E BOLT, STUD, 8X22 2
22 91105KSP910 DOWEL PIN, 8X14 4
23 9430108140 DOWEL PIN, 8X14 4
24 9430112160 PIN A, DOWEL, 12X16 2
25 957010612000 BOLT, FLANGE, 6X120 2
