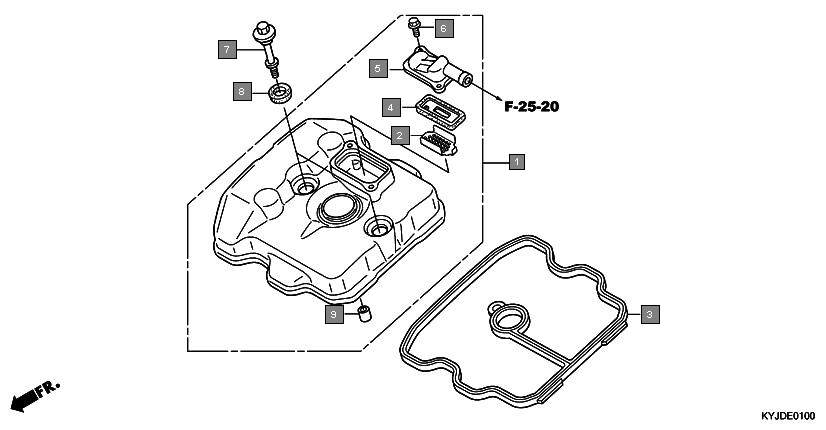

Motorcycles CBR250R CBR250RG Engine Cylinder head cover
Ref.No. Part No. Description Oty
1 12300KYJ900 COVER ASSY., CYLINDER HEAD 1
2 12341MAT750 PLATE, PORT(AI) 1
3 12391KYJ710 GASKET COMP., CYLINDER HEAD COVER 1
4 18601KEA741 VALVE COMP., REED(ARAI) 1
5 18612KYJ900 COVER, REED VALVE 1
6 90002KGH900 BOLT, FLANGE, 5X14 2
7 90018KYJ900 BOLT, HEAD COVER 2
8 90543MV9670 RUBBER, MOUNTING 2
9 9430110160 DOWEL PIN, 10X16 1
