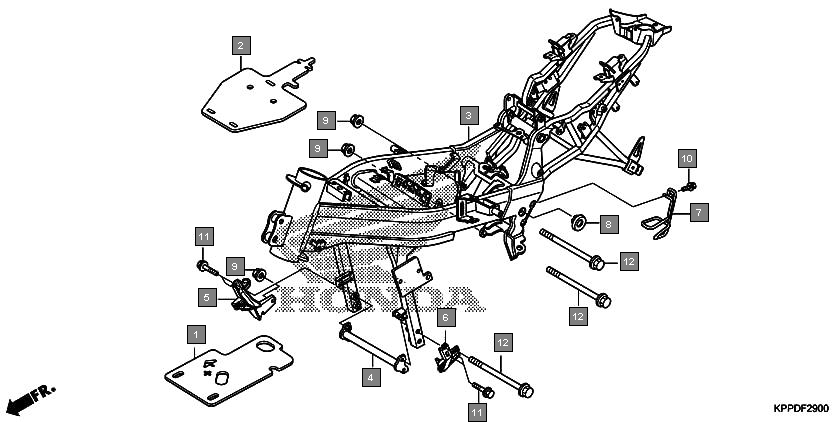

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 19125KPPT00 | RUBBER, LOWER | 1 |
2 | 19126KPPT00 | RUBBER, UPPER | 1 |
3 | 50100KPPN00 | BODY COMP., FRAME | 1 |
4 | 50119KPPT00 | PIPE COMP., SUPPORT | 1 |
5 | 50160KPPT00ZA | PLATE, R. FR. ENGINE HANGER LOWER *NH1* BLACK | 1 |
6 | 50161KPPT00ZA | PLATE, L. FR. ENGINE HANGER LOWER *NH1* BLACK | 1 |
7 | 50189KPPT00 | GUIDE, DRAIN TUBE | 1 |
8 | 52161KW6900 | CAP, RR. FORK PIVOT PLATE | 2 |
9 | 9405010000 | NUT, FLANGE, 10MM | 3 |
10 | 957010601200 | BOLT, FLANGE, 6X12 | 1 |
11 | 957010804000 | BOLT, FLANGE, 8X40 | 4 |
12 | 957011012000 | BOLT, FLANGE, 10X120 | 3 |
