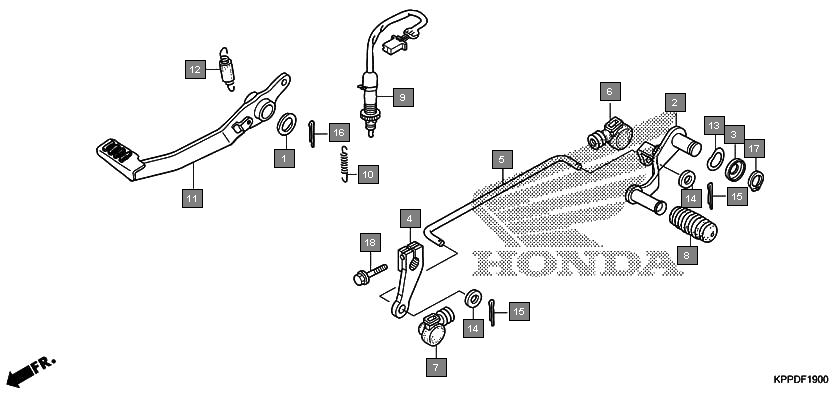

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 16502KTYJ00 | WASHER, SWITCH BOSS | 1 |
2 | 24701KPPN00 | PEDAL COMP., GEAR CHANGE | 1 |
3 | 24703KGH900 | WASHER, CHANGE PEDAL | 1 |
4 | 24711KPP900 | ARM, GEAR CHANGE | 1 |
5 | 24720KPPT00 | ROD, TIE | 1 |
6 | 24721KPP900 | COVER, CHANGE PEDAL | 1 |
7 | 24721KW6960 | COVER, CHANGE PEDAL | 1 |
8 | 24781449000 | RUBBER, GEAR CHANGE | 1 |
9 | 35350KPPN01 | SWITCH ASSY., RR. STOP | 1 |
10 | 35357KBA900 | SPRING, STOP SWITCH | 1 |
11 | 46500KPPT00 | PEDAL COMP., BRAKE | 1 |
12 | 46513KPP900 | SPRING ASSY., BRAKE PEDAL | 1 |
13 | 90405ZA8800 | WASHER, WAVE, 15MM | 1 |
14 | 90502155000 | WASHER, PLAIN, 7MM | 2 |
15 | 9420120120 | PIN, SPLIT, 2.0X12 | 2 |
16 | 9420125220 | PIN, SPLIT, 2.5X22 | 1 |
17 | 9451015000 | CIRCLIP, EXTERNAL, 15MM | 1 |
18 | 957010602000 | BOLT, FLANGE, 6X20 | 1 |
