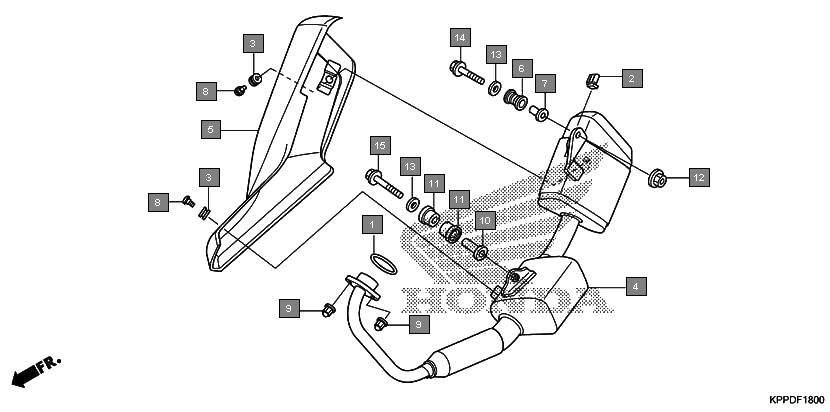

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18291MN5650 | GASKET, EX. PIPE | 1 |
2 | 18293KPK900 | RUBBER, PROTECTOR PACKING | 1 |
3 | 18345MBT610 | RUBBER, PROTECTOR MOUNTING | 2 |
4 | 18350KPPN00 | MUFFLER COMP., EX. | 1 |
5 | 18355KPPN20 | COVER, MUFFLER | 1 |
6 | 18421KPP930 | RUBBER, MUFFLER MOUNTING | 1 |
7 | 18422KGC900 | COLLAR, MUFFLER MOUNTING | 1 |
8 | 90113KTA920 | SCREW, PAN, 6X12 | 2 |
9 | 90305KSP900 | NUT, EXHAUST PIPE, 8MM | 2 |
10 | 90321KW6840 | COLLAR, MUFFLER SETTING | 1 |
11 | 90802KY4680 | RUBBER, MUFFLER SETTING | 2 |
12 | 9405008000 | NUT, FLANGE, 8MM | 1 |
13 | 9410308000 | WASHER, PLAIN, 8MM | 2 |
14 | 957010803500 | BOLT, FLANGE, 8X35 | 1 |
15 | 957010805000 | BOLT, FLANGE, 8X50 | 1 |
