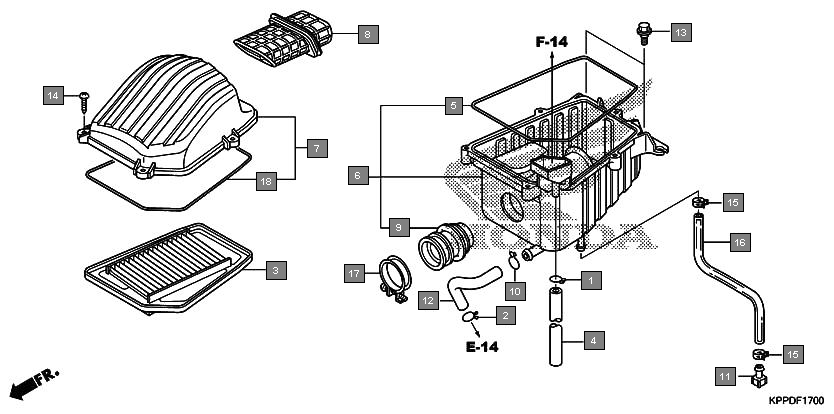

Motorcycles CBR150R CBR150RG Frame Air cleaner
Ref.No. Part No. Description Oty
1 15772292010 CLIP, BREATHER TUBE 1
2 15772KTYJ00 CLIP, BREATHER TUBE 1
3 17210KPPN00 ELEMENT COMP., AIR CLEANER 1
4 17211KPPT00 TUBE, DRAIN 1
5 17213KPP900 SEAL, AIR CLEANER 1
6 17225KPPN00 CASE SUB ASSY., AIR CLEANER 1
7 17235KPPN00 CASE SUB ASSY., AIR CLEANER 1
8 17240KPPT00 DUCT, INLET 1
9 17253KPPN00 TUBE, AIR CLEANER CONNECTING 1
10 17316611000 CLIP, BREATHER TUBE 1
11 17370419700 PLUG, BREATHER TUBE 1
12 17370KTYD30 TUBE, BREATHER 1
13 90111162000 BOLT, FLANGE, 6MM 2
14 9390325510 SCREW, TAPPING, 5X25 5
15 950024105008 CLAMP, TUBE(D10.5) 2
16 950032303831 TUBE, VINYL, 8X12X380 (95003-23001-60M) 1
17 9501850250 BAND, AIR CLEANER CONNECTING TUBE(50) 1
