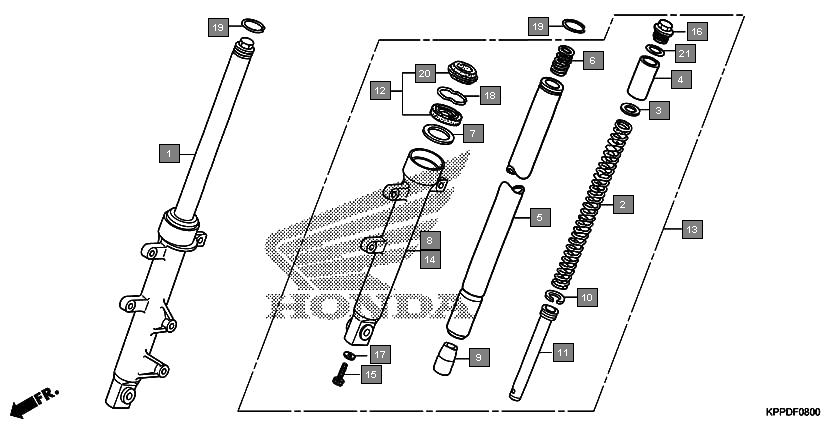

Motorcycles CBR150R CBR150RG Frame Front fork
Ref.No. Part No. Description Oty
1 51400KPPN01 FORK ASSY., R. FR.(SHOWA) 1
2 51401KPPN01 SPRING, FR. FORK 2
3 51403447731 PLATE, SPRING JOINT(SHOWA) 2
4 51403KCC901 COLLAR, SPRING(SHOWA) 2
5 51410KPPN01 PIPE COMP., FR. FORK 2
6 51412GC4003 SPRING, FR. CUSHION REBOUND 2
7 51412KFN851 RING, BACK UP 2
8 51420KPPN01 CASE COMP., R. BOTTOM 1
9 51432KFN851 PIECE, OIL LOCK 2
10 51437GS3003 RING, PISTON 2
11 51440KPPN01 PIPE COMP., SEAT 2
12 51490KRM852 SEAL SET, FR. FORK 2
13 51500KPPN01 FORK ASSY., L. FR.(SHOWA) 1
14 51520KPPN01 CASE COMP., L. BOTTOM 1
15 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
16 90123KPPN01 BOLT A, FR. FORK 2
17 90544KFN851 WASHER, SPECIAL, 8MM(SHOWA) 2
18 90601354000 RING, OIL SEAL STOP 2
19 90651KR0000 RING, SNAP 2
20 91254GAA003 DUST SEAL 2
21 9460850000 O-RING, 23X2.8 2
