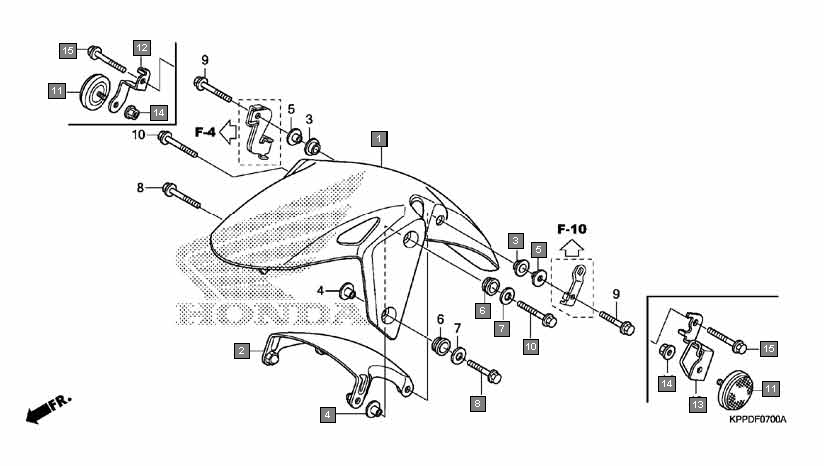

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 61100KPPT00YD | FENDER, FR. *PB396M*ATHLECTIC BLUE METALLIC | 1 |
2 | 61100KPPT00ZM | FENDER, FR. *GY142C* CANDY PALM GREEN | 1 |
3 | 61100KPPT00ZK | FENDER, FR. *R321* SPORTS RED | 1 |
4 | 61101KPPN00 | STAY, FR. FENDER | 1 |
5 | 61103KPF910 | RUBBER, FR. FENDER MOUNTING | 2 |
6 | 61103KRY900 | COLLAR A, FR. FENDER | 4 |
7 | 61105KPF910 | COLLAR, FR. FENDER MOUNTING | 2 |
8 | 61105KRY900 | RUBBER, FR. FENDER MOUNTING | 4 |
9 | 90485286000 | WASHER, 6MM | 4 |
10 | 960010602800 | BOLT, FLANGE, 6X28 | 2 |
11 | 960010603500 | BOLT, FLANGE, 6X35 | 2 |
12 | 33740KTE601 | REFLECTOR, FR. SIDE REFLEX | 1 |
13 | 61103KTYC80 | STAY, R. FR. REFLECTOR | 1 |
14 | 61104KTYC80 | STAY, L. FR. REFLECTOR | 1 |
15 | 90302KTE911 | NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) | 2 |
