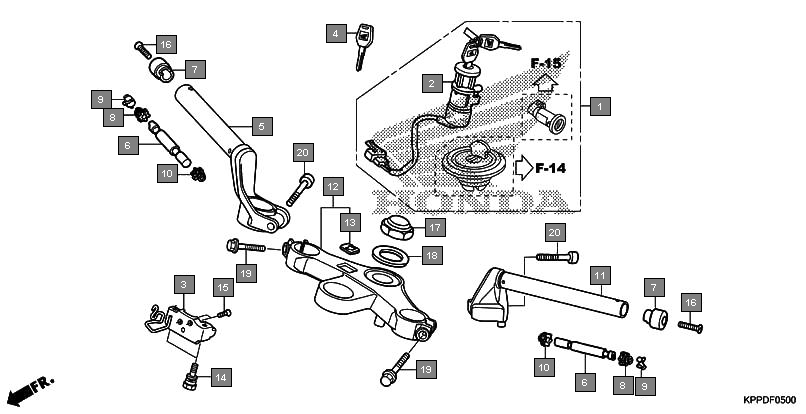

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 35010KPPN00 | KEY SET | 1 |
2 | 35100KPPN01 | SWITCH ASSY., COMBINATION & LOCK | 1 |
3 | 35105KPPT00 | STAY COMP., COMBINATION SWITCH | 1 |
4 | 35121KPPN01 | KEY, BLANK | 1 |
5 | 53100KPPT00 | PIPE COMP., R. STEERING HANDLE | 1 |
6 | 53104KPP900 | WEIGHT B, HANDLE | 2 |
7 | 53105KPP860 | WEIGHT A, STEERING HANDLE | 2 |
8 | 53107MJ0000 | RUBBER B, HANDLE WEIGHT | 2 |
9 | 53108MJ0000 | RING, HANDLE WEIGHT SNAP | 2 |
10 | 53109MV4000 | RUBBER B, HANDLE WEIGHT | 2 |
11 | 53150KPPT00 | PIPE COMP., L. STEERING HANDLE | 1 |
12 | 53300KPPN00ZA | BRIDGE COMP., FORK TOP *NH105* MAT BLACK(#15-#20) | 1 |
13 | 86150KWS601 | EMBLEM, PRODUCT(SJS) | 1 |
14 | 90107KPPN00 | BOLT, BREAK OFF | 2 |
15 | 90164028000 | SCREW, U-LOCK FLAT, 6X12 | 2 |
16 | 90191KPH970 | SCREW, OVAL, 6X65 | 2 |
17 | 90304KSP900 | NUT, STEERING STEM | 1 |
18 | 90503KSP900 | WASHER, STEERING STEM | 1 |
19 | 957010804000 | BOLT, FLANGE, 8X40 | 2 |
