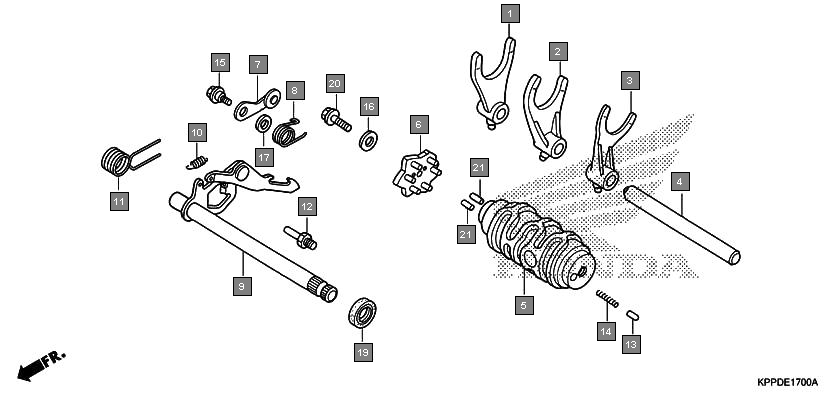

Motorcycles CBR150R CBR150RG Engine Gear shift drum
Ref.No. Part No. Description Oty
1 24211KPP900 FORK, R. GEARSHIFT 1
2 24212KPP900 FORK, CENTER GEARSHIFT 1
3 24213KPP900 FORK, L. GEARSHIFT 1
4 24241KPP900 SHAFT, GEARSHIFT FORK 1
5 24301KPP900 DRUM, GEARSHIFT 1
6 24410KPP900 PLATE COMP., GEARSHIFT DRUM STOPPER 1
7 24430KGH901 STOPPER COMP., GEARSHIFT DRUM 1
8 24436KTYD30 SPRING, GEARSHIFT DRUM STOPPER 1
9 24610KPP900 SPINDLE COMP., GEARSHIFT 1
10 24641KBP900 SPRING, GEARSHIFT ARM 1
11 24651KTYD30 SPRING, GEARSHIFT RETURN 1
12 24652035000 PIN, SHIFT RETURN SPRING 1
13 35751KPH900 CAP, CHANGE SWITCH CONTACT 1
14 35752KPH900 SPRING, CHANGE SWITCH CONTACT 1
15 90022MG8000 PIVOT, SHIFT DRUM STOPPER ARM 1
16 90402KW7900 WASHER, THRUST, 6MM 1
17 90435HB3000 WASHER, 6.1MM 1
18 91209612000 OIL SEAL, 12X22X7 1
19 957010601600 BOLT, FLANGE, 6X16 1
20 9622030085 ROLLER, 3X8.5 2
