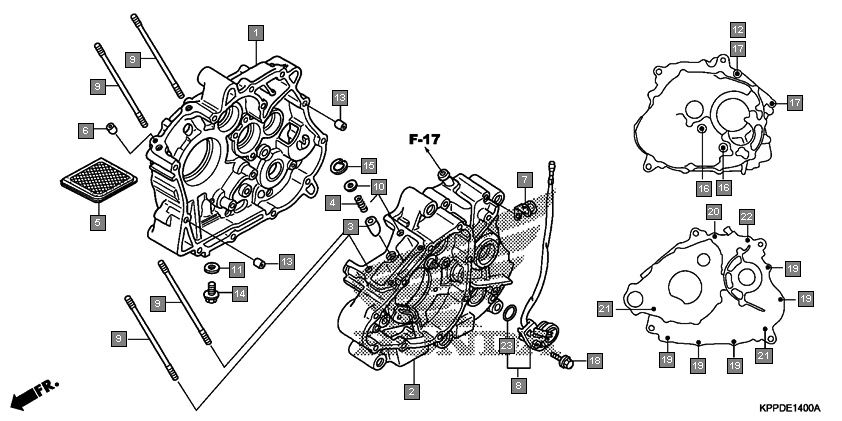

Motorcycles CBR150R CBR150RG Engine Crankcase
Ref.No. Part No. Description Oty
1 11100KPP900 CRANKCASE COMP., R. 1
2 11200KPP900 CRANKCASE COMP., L. 1
3 14521KPP900 PLUG, BEARING PUSH 1
4 14531KPP900 SPRING, BEARING PUSH 1
5 15421035010 SCREEN, OIL FILTER 1
6 15517KGH900 ORIFICE, 1.8 1
7 32906061000 CLIP, HIGH TENSION CORD 1
8 35759KTYD31 CONTACT ASSY., CHANGE SWITCH 1
9 90031KPP900 BOLT, CYLINDER STUD 4
10 90403KPP900 WASHER, 3X11X1.0 1
11 90407259000 PACKING, DRAIN COCK, 12.5X20 1
12 90488425000 WASHER, SEALING, 6MM 1
13 90702KFM900 DOWEL PIN, 8X12 2
14 9280012000 BOLT, DRAIN PLUG, 12MM 1
15 9452012000 CIRCLIP, INTERNAL, 12MM 1
16 957010603500 BOLT, FLANGE, 6X35 2
17 957010606500 BOLT, FLANGE, 6X65 2
18 960010602200 BOLT, FLANGE, 6X22 1
19 960010604000 BOLT, FLANGE, 6X40 5
20 960010605500 BOLT, FLANGE, 6X55 1
21 960010606500 BOLT, FLANGE, 6X65 2
22 960010607500 BOLT, FLANGE, 6X75 1
23 91301KTYD31 O-RING, 20.2X2.5 1
