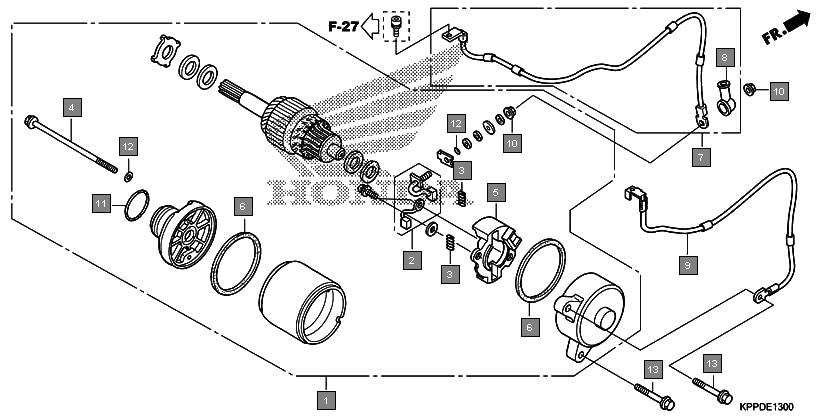

Motorcycles CBR150R CBR150RG Engine Starter motor
Ref.No. Part No. Description Oty
1 31200KPPT01 MOTOR ASSY., STARTER(MITSUBA) 1
2 31201KPTA01 TERMINAL SET, BRUSH 1
3 31204KG8004 SPRING, CARBON BRUSH 2
4 31205KTC921 BOLT, SETTING 2
5 31206KPPT01 HOLDER, BRUSH 1
6 31207MBE008 RING 2
7 32410KPPT00 CABLE, STARTER MOTOR 1
8 32411253000 COVER, STARTER MOTOR TERMINAL 1
9 32412KPPT00 CABLE, EARTH 1
10 90071MB0000 NUT-WASHER, 6MM 2
11 91309425003 O-RING, 24.4X3.1(ARAI) 1
12 91320MB0000 O-RING, 4X2 3
13 957010602500 BOLT, FLANGE, 6X25 2
