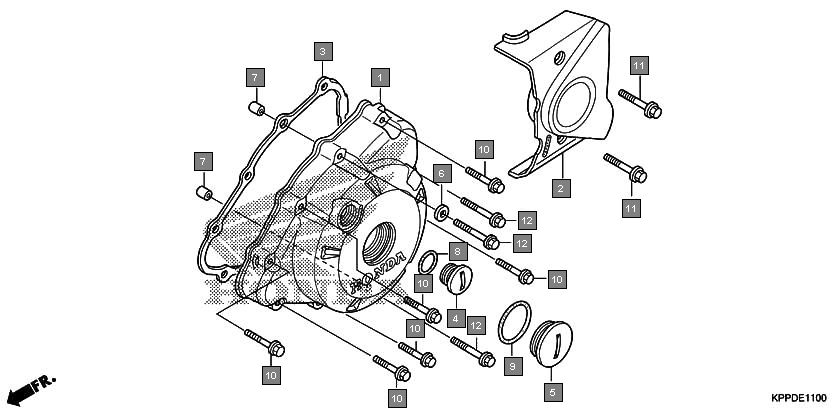

Motorcycles CBR150R CBR150RG Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341KPPT00 COVER, L. CRANKCASE 1
2 11360KPPN00 COVER COMP., L. RR. 1
3 11395KGH901 GASKET, L. COVER 1
4 90084KCJ670 CAP, A.C. GENERATOR 1
5 90087KVLN00 CAP, 30MM 1
6 90488425000 WASHER, SEALING, 6MM 1
7 90702KFM900 DOWEL PIN, 8X12 2
8 91303377000 O-RING, 13.8X2.5 1
9 91356KGH901 O-RING, 30MM 1
10 960010603000 BOLT, FLANGE, 6X30 6
11 960010603200 BOLT, FLANGE, 6X32 2
12 960010604000 BOLT, FLANGE, 6X40 3
