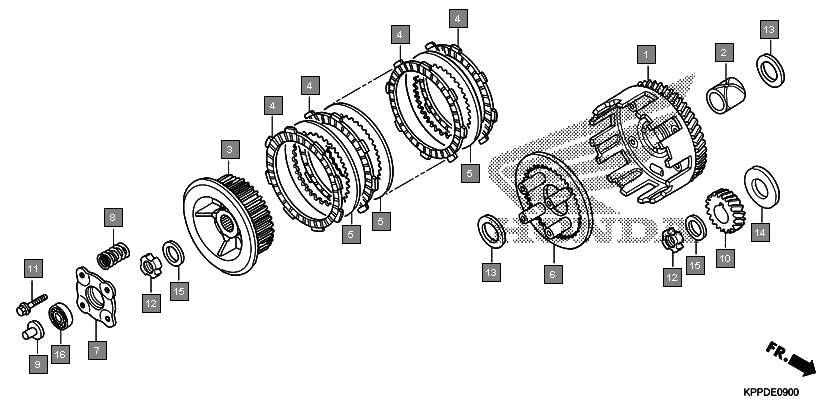

Motorcycles CBR150R CBR150RG Engine Clutch
Ref.No. Part No. Description Oty
1 22100KPPT00 OUTER COMP., CLUTCH(75T) 1
2 22105KBA900 GUIDE, CLUTCH OUTER 1
3 22120KPPN00 CENTER, CLUTCH 1
4 22201KGH600 DISK, CLUTCH FRICTION 5
5 22321KGH600 PLATE, CLUTCH 4
6 22355KGH600 PLATE, CLUTCH PRESSURE 1
7 22361KGH600 PLATE, CLUTCH LIFTER 1
8 22401KPP900 SPRING, CLUTCH 4
9 22849KGH900 ROD, CLUTCH LIFTER 1
10 23121KPP900 GEAR A, PRIMARY DRIVE(23T)(WHITE) 1
11 23122KPP900 GEAR B, PRIMARY DRIVE(23T) (BLUE) 1
12 23123KPP900 GEAR C, PRIMARY DRIVE(23T)(YELLOW) 1
13 90008KT7000 BOLT, FLANGE, 6X25 4
14 90231KM7700 NUT, LOCK, 14MM 2
15 90401KY4901 WASHER, PLAIN, 17MM 2
16 90434KGH900 WASHER, 20MM 1
17 90501GBL730 WASHER, 14MM 2
18 91007KE1003 BEARING, RADIAL BALL, 6903 1
