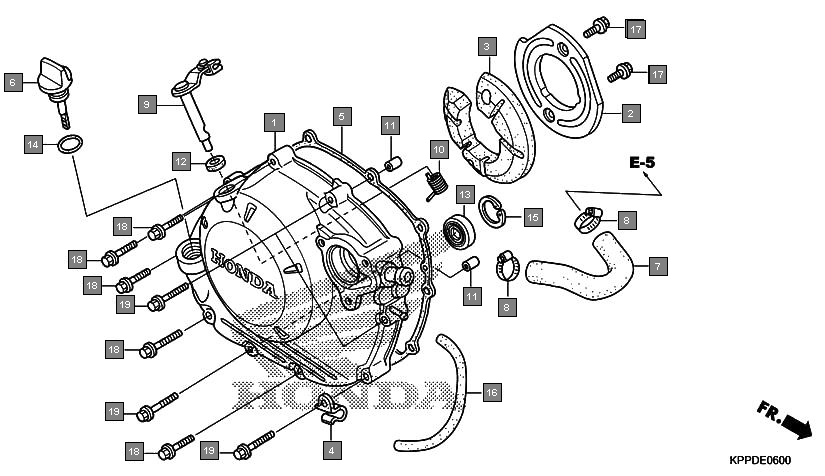

Motorcycles CBR150R CBR150RG Engine Right crankcase cover
Ref.No. Part No. Description Oty
1 957020601400 BOLT, FLANGE, 6X14 2
2 11330KPP930 COVER COMP., R. CRANKCASE 1
3 11333KPP900 PLATE, R. COVER 1
4 11334KPP900 RUBBER, R. COVER 1
5 11335KPP900 CLAMPER, TUBE 1
6 11393KGH901 GASKET, R. COVER 1
7 15651KGH900 GAUGE, OIL LEVEL 1
8 19502KPPT00 HOSE, WATER 1
9 19506KGH900 CLAMP, WATER HOSE 2
10 22810KTYD30 LEVER COMP., CLUTCH 1
11 22815KW7930 SPRING, CLUTCH LEVER 1
12 90702HC4000 DOWEL PIN, 8X16 2
13 91203750003 OIL SEAL, 12X18X4(ARAI) 1
14 91205KF0003 OIL SEAL, 12X20X5(ARAI) 1
15 91307035000 O-RING, 18X3 1
16 9452022000 CIRCLIP, INTERNAL, 22MM 1
17 950055015030 TUBE, 5X150(95005-50001-30M) 1
18 957010601400 BOLT, FLANGE, 6X14 2
19 960010603000 BOLT, FLANGE, 6X30 5
20 960010604000 BOLT, FLANGE, 6X40 4
