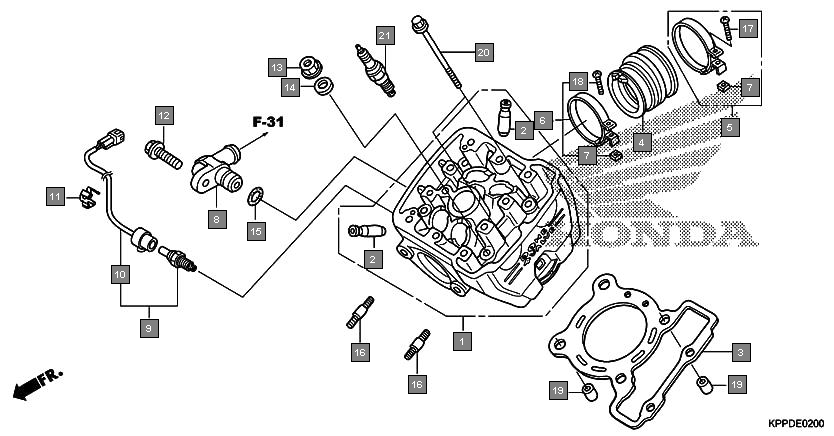

Motorcycles CBR150R CBR150RG Engine Cylinder head
Ref.No. Part No. Description Oty
1 12200KPP600 HEAD COMP., CYLINDER 1
2 12204KPP305 GUIDE, VALVE(O.S.) 4
3 12251KPPT01 GASKET, CYLINDER HEAD 1
4 12252KPPT00 GASKET, CYLINDER HEAD(O.S.) 1
5 16211KPPT01 INSULATOR, CARBURETOR 1
6 16216KTYD30 BAND, INSULATOR 1
7 16217KPH700 BAND, INSULATOR 1
8 16222MV4300 NUT, SQUARE, 5MM 2
9 19064KPP900 JOINT, WATER 1
10 36532KRY971 SENSOR, OXYGEN 1
11 36533KRY970 CORD COMP., OXYGEN SENSOR 1
12 36538KPPT00 COVER, O2 SENSOR 1
13 90004GHB660 BOLT, FLANGE, 6X22(NSHF) 1
14 90202KGB610 NUT, FLANGE, 8MM 4
15 90483028000 WASHER, 8MM 4
16 91301KV7671 O-RING, 14.8X1.9(ARAI) 1
17 92900080320E BOLT, STUD, 8X32 2
18 93500050250G SCREW, PAN, 5X25 1
19 93516050250G SCREW, PAN, 5X25 1
20 9430110120 DOWEL PIN, 10X12 2
21 957010611500 BOLT, FLANGE, 6X115 2
22 9805958816 PLUG, SPARK(CR8E)(NGK) 1
23 9805958826 PLUG, SPARK(U24ESR-N)(DENSO) 1
24 9805959816 PLUG, SPARK(CR9E)(NGK) 1
25 9805959826 PLUG, SPARK(U27ESR-N)(DENSO) 1
