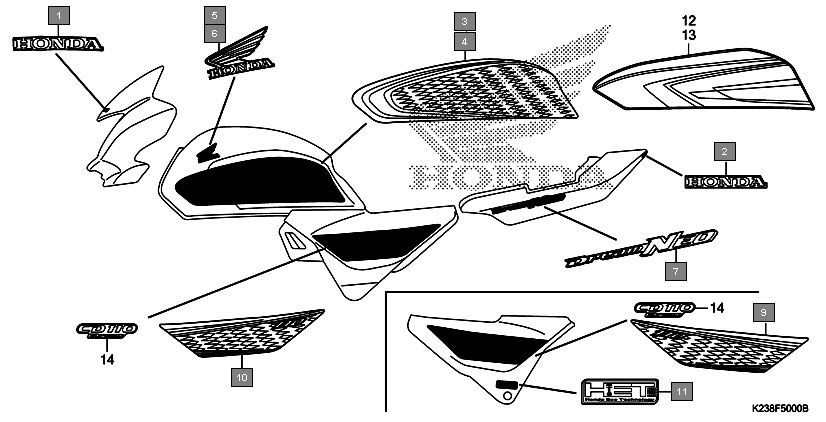

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 86101K23960ZA | MARK, HONDA(70MM)*TYPE1* | 1 |
2 | 86101K23900ZE | MARK, HONDA(70MM)*TYPE1* | 1 |
3 | 86101K23900ZA | MARK, HONDA(70MM)*TYPE5* | 1 |
4 | 86102K23960ZB | MARK, HONDA(70MM)*TYPE1* | 1 |
5 | 86102K23900ZE | MARK, HONDA(70MM)*TYPE1* | 1 |
6 | 86102K23900ZA | MARK, HONDA(70MM)*TYPE5* | 1 |
7 | 86171K23960ZA | STRIPE, R. FUEL TANK*TYPE1* | 1 |
8 | 86171K23900ZA | STRIPE, R. FUEL TANK*TYPE6* | 1 |
9 | 86171K23900ZF | STRIPE, R. FUEL TANK*TYPE1* | 1 |
10 | 86172K23960ZA | STRIPE, L. FUEL TANK*TYPE1* | 1 |
11 | 86172K23900ZA | STRIPE, L. FUEL TANK*TYPE6* | 1 |
12 | 86172K23900ZF | STRIPE, L. FUEL TANK*TYPE1* | 1 |
13 | 86201K23960ZA | MARK, R. WING(100MM)*TYPE1* | 1 |
14 | 86201K23900ZE | MARK, R. WING(100MM)*TYPE1* | 1 |
15 | 86201K23900ZA | MARK, R. WING(100MM)*TYPE5* | 1 |
16 | 86202K23900ZE | MARK, L. WING(100MM)*TYPE1* | 1 |
17 | 86202K23900ZA | MARK, L. WING(100MM)*TYPE5* | 1 |
18 | 86771K23900ZF | MARK, RR. COWL*TYPE1* | 2 |
19 | 86831K23960ZA | STRIPE, R. SIDE COVER *TYPE1* | 1 |
20 | 86831K23900ZA | STRIPE, R. SIDE COVER *TYPE6* | 1 |
21 | 86831K23900ZF | STRIPE, R. SIDE COVER *TYPE1* | 1 |
22 | 86832K23960ZA | STRIPE, L. SIDE COVER*TYPE1* | 1 |
23 | 86832K23900ZA | STRIPE, L. SIDE COVER*TYPE6* | 1 |
24 | 86832K23900ZF | STRIPE, L. SIDE COVER*TYPE1* | 1 |
25 | 86833KWPD00ZA | MARK, HET *TYPE1* | 1 |
