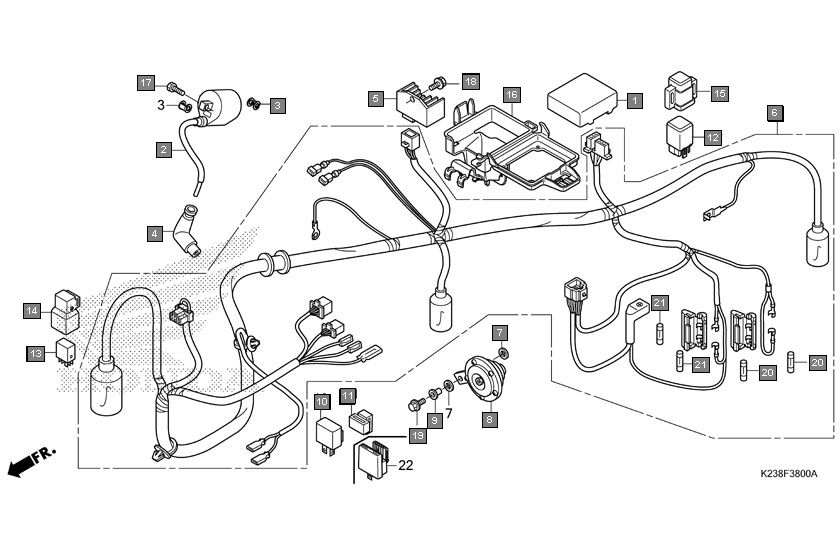

Motorcycles Dream Neo CB110CMF Frame Wire harness
Ref.No. Part No. Description Oty
1 30410K23901 SPARK UNIT COMP.(DENSO) 1
2 30410K14931 SPARK UNIT COMP.(SHINDENGEN) 1
3 30500K14901 COIL ASSY., IGNITION(WINGS) (W35) 1
4 30500K14931 COIL ASSY., IGNITION(JAGDISH)(J35) 1
5 30520GFM900 SPACER, IGNITION COIL 2
6 30700K14901 CAP ASSY., NOISE SUPPRESSOR (KUNAL) 1
7 30700KTE601 CAP ASSY., NOISE SUPPRESSOR(ANU) 1
8 31600K14961 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
9 31600K14962 RECTIFIER COMP., REGULATE(SINDENGEN) 1
10 31600K23C11 RECTIFIER COMP., REGULATE (SHINDENGEN) 1
11 32100K23910 HARNESS, WIRE 1
12 32100K14960 HARNESS, WIRE(MINDA SAI) 1
13 32100K14A00 HARNESS, WIRE(MOTHERSON SUMI) 1
14 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
15 38110K14901 HORN COMP. 1
16 38117KFE701 COLLAR, HORN SETTING 1
17 38301KWS901 RELAY COMP., WINKER(MULTILINK) 1
18 38301K23A01 RELAY COMP., WINKER (STAR ENGINEERS) 1
19 38306GE7000 SUSPENSION, WINKER RELAY 1
20 38306K14931 SUSPENSION, WINKER RELAY (STAR ENGINEERS) 1
21 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
22 38501KWH971 RELAY COMP., STARTER(JAGDISH) 1
23 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
24 38502KWA931 RELAY COMP., POWER (MICRO ISO 5P)(MULTILINK) 1
25 38506K23900 SUSPENSION, POWER RELAY 1
26 38506K23910 SUSPENSION, STARTER RELAY 1
27 50370K23900 HOLDER, C.D.I. UNIT 1
28 50370K14960 HOLDER, C.D.I. UNIT 1
29 92101060204J BOLT, HEX., 6X20 2
30 957010601200 BOLT, FLANGE, 6X12 1
31 957020601200 BOLT, FLANGE, 6X12 1
32 957010602000 BOLT, FLANGE, 6X20 1
33 957020602000 BOLT, FLANGE, 6X20 1
34 9820011000 FUSE A(10A) 2
35 9820011500 FUSE(15A) 2
