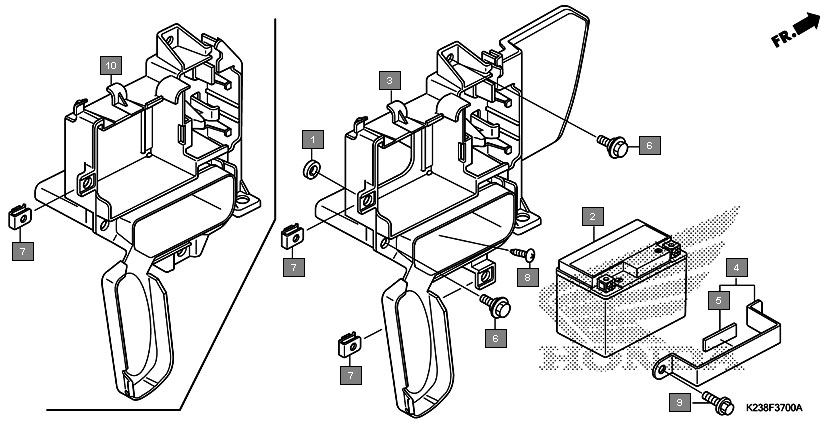

Motorcycles Dream Neo CB110CMF Frame Battery
Ref.No. Part No. Description Oty
1 17223KVX600 COLLAR, AIR CLEANER 1
2 31500KVT801 BATTERY ASSY.(ETZ4-BS)(EXIDE) 1
3 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
4 31500KWS842 BATTERY(YTX4L-BS)(GS YUASA) 1
5 50325K23900 BOX, BATTERY 1
6 50326KZAW00 BAND, BATTERY 1
7 77211KVE900 CUSHION, RR. COWL 1
8 90111162000 BOLT, FLANGE, 6MM 2
9 90311MT3000 NUT, CLIP, 6MM 2
10 90311MT3000 NUT, CLIP, 6MM 1
11 9390325380 SCREW, TAPPING, 5X16 1
12 957010601608 BOLT, FLANGE, 6X16 1
13 957020601608 BOLT, FLANGE, 6X16 1
14 50325K14900 BOX, BATTERY 1
