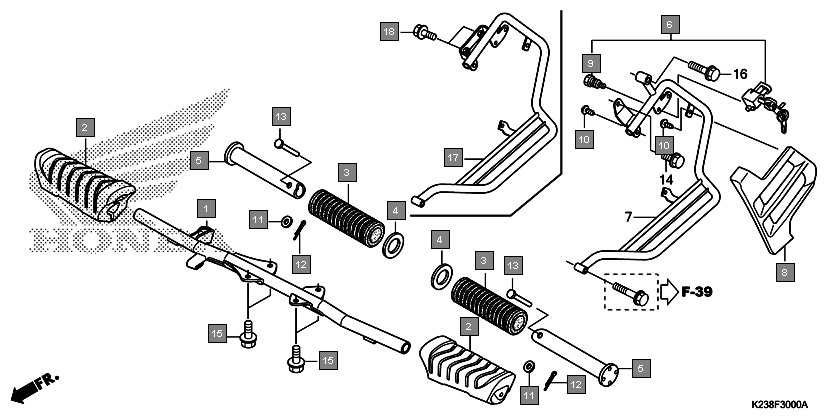

Motorcycles Dream Neo CB110CMF Frame Step
Ref.No. Part No. Description Oty
1 50610K14900 BAR COMP., STEP 1
2 50610K14960 BAR COMP., STEP 1
3 50661K14900 RUBBER, STEP 2
4 50661K14960 RUBBER, MAIN STEP 2
5 50710KTE910 RUBBER, PILLION STEP 2
6 50712405000 WASHER, PILLION STEP 2
7 50715405000 BAR, PILLION STEP 2
8 50730K14900 HOLDER SET, HELMET 1
9 51104K14900 GUARD B, SARI 1
10 90107449000 BOLT, HELMET HOLDER SETTING 1
11 9390335220 SCREW, TAPPING, 5X12 2
12 9410106000 WASHER, PLAIN, 6MM 2
13 9420116120 PIN, SPLIT, 1.6X12 2
14 9501581000 PIN A, PILLION STEP 2
15 957010801808 BOLT, FLANGE, 8X18 4
16 957020801808 BOLT, FLANGE, 8X18 4
17 51103K23A00 GUARD A, SARI 1
18 957010801407 BOLT, FLANGE, 8X14 2
19 957020801407 BOLT, FLANGE, 8X14 2
