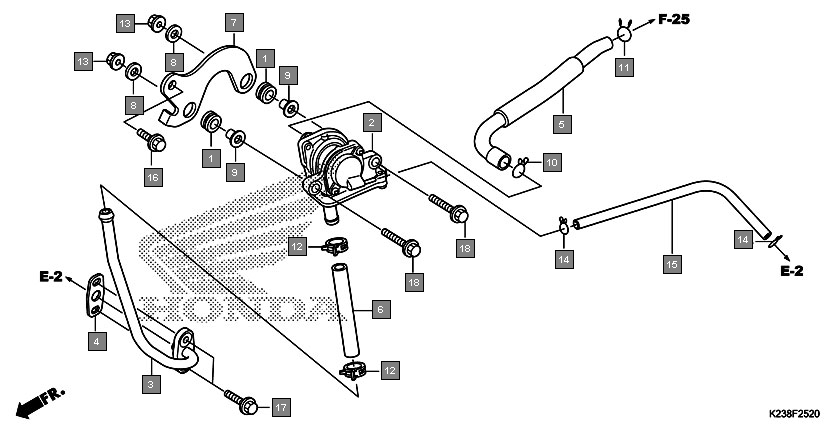

Motorcycles Dream Neo CB110CMF Frame Air suction valve
Ref.No. Part No. Description Oty
1 17622GB7900 RUBBER, CUSHION 2
2 18600K23933 VALVE ASSY., AIR SUCTION (MIKUNI) 1
3 18600K23901 VALVE ASSY., AIR SUCTION 1
4 18600K23C11 VALVE ASSY., AIR SUCTION (MIKUNI) 1
5 18640K14900 PIPE COMP., AIR FEED 1
6 18645KPHC00 GASKET, AIR FEED PIPE 1
7 18651K14900 TUBE A, AIR SUCTION VALVE 1
8 18652KZAW00 TUBE B, AIR SUCTION VALVE 1
9 50535KZAW00 BRACKET, AIR SUCTION VALVE 1
10 90450ZA0000 WASHER, PLAIN, 6X16 2
11 90501KC2750 WASHER, REGULATOR SETTING 2
12 90651K14900 CLIP, TUBE(B15) 1
13 90651MK3780 CLIP, TUBE(B12.5) 1
14 90678MR1690 CLIP, HOSE 2
15 9405006000 NUT, FLANGE, 6MM 2
16 9500202070 CLIP, TUBE(B7) 2
17 950053525020 TUBE, 3.5X250(95005-35001-20M) 1
18 957010601208 BOLT, FLANGE, 6X12 1
19 957020601208 BOLT, FLANGE, 6X12 1
20 957010602000 BOLT, FLANGE, 6X20 2
21 957020602000 BOLT, FLANGE, 6X20 2
22 960010602800 BOLT, FLANGE, 6X28 2
