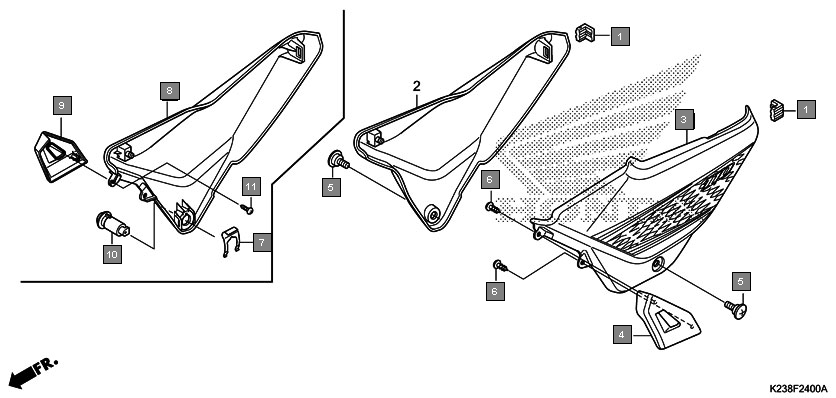

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 83502KCC900 | GROMMET, SIDE COVER | 2 |
2 | 83520K23960ZA | COVER SET, R. SIDE(WL) *TYPE5* | 1 |
3 | 83520K23960ZB | COVER SET, R. SIDE(WL) *TYPE4* | 1 |
4 | 83520K23960ZE | COVER SET, R. SIDE(WL) *TYPE1* | 1 |
5 | 83620K23960ZA | COVER SET, L. SIDE(WL) *TYPE5* | 1 |
6 | 83620K23A00ZA | COVER SET, L. SIDE(WL) *TYPE5* | 1 |
7 | 83620K23A00ZB | COVER SET, L. SIDE(WL) *TYPE4* | 1 |
8 | 83620K23A00ZC | COVER SET, L. SIDE(WL) *TYPE3* | 1 |
9 | 83620K23A00ZD | COVER SET, L. SIDE(WL) *TYPE2* | 1 |
10 | 83620K23A00ZE | COVER SET, L. SIDE(WL) *TYPE1* | 1 |
11 | 83620K23960ZB | COVER SET, L. SIDE(WL) *TYPE4* | 1 |
12 | 83620K23960ZE | COVER SET, L. SIDE(WL) *TYPE1* | 1 |
13 | 83740K23900 | LID, SIDE COVER | 1 |
14 | 90104KYY900 | SCREW, SPECIAL, 6X17 | 2 |
15 | 9390324220 | SCREW, TAPPING, 4X10 | 2 |
16 | 75581GN8920 | SPRING, LOCK KEY SETTING | 1 |
17 | 83520K23A00ZA | COVER SET, R. SIDE(WL)*TYPE5* | 1 |
18 | 83520K23A00ZB | COVER SET, R. SIDE(WL)*TYPE4* | 1 |
19 | 83520K23A00ZC | COVER SET, R. SIDE(WL)*TYPE3* | 1 |
20 | 83520K23A00ZD | COVER SET, R. SIDE(WL)*TYPE2* | 1 |
21 | 83520K23A00ZE | COVER SET, R. SIDE(WL)*TYPE1* | 1 |
22 | 83541K23A00 | SUB COVER, R. SIDE | 1 |
23 | 83550K14901 | LOCK, SIDE COVER(JAY USHIN) | 1 |
24 | 83550K14931 | LOCK, SIDE COVER(MINDA) | 1 |
