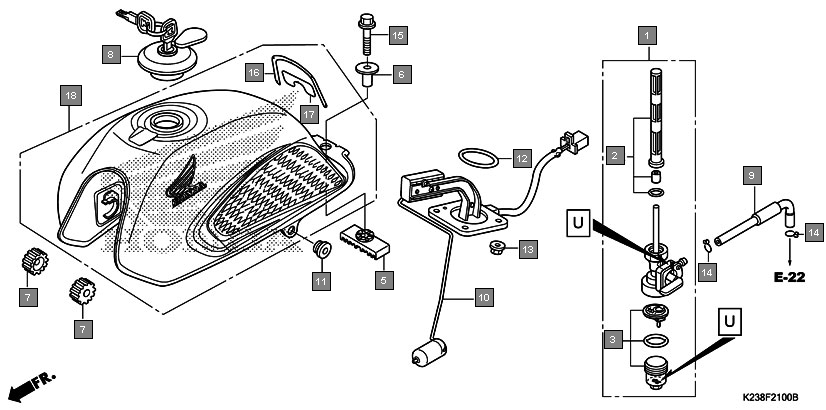

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16950K23900 | COCK ASSY., FUEL (UCAL) | 1 |
| 2 | 16954KZAW00 | SCREEN SET, FUEL STRAINER (UCAL) | 1 |
| 3 | 16955K23900 | CUP SET, FUEL STRAINER (UCAL) | 1 |
| 4 | 17508KVX600 | RUBBER, RR. FUEL TANK MOUNTING | 1 |
| 5 | 17509K23900 | COLLAR, FUEL TANK MOUNT | 1 |
| 6 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
| 7 | 17620KSP911 | CAP COMP., FUEL FILLER (JAY USHIN) | 1 |
| 8 | 17620K14931 | CAP COMP,FUEL FILLER (MINDA) | 1 |
| 9 | 17681K14900 | TUBE, FUEL | 1 |
| 10 | 37800K23901 | FUEL UNIT | 1 |
| 11 | 83551376000 | GROMMET, SIDE COVER | 2 |
| 12 | 91305443740 | O-RING, 39.5X5 | 1 |
| 13 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 14 | 9500202080 | CLIP, TUBE(B8) | 2 |
| 15 | 957010803508 | BOLT, FLANGE, 8X35 | 1 |
| 16 | 957020803508 | BOLT, FLANGE, 8X35 | 1 |
| 17 | 17506K23900 | FILM A, TANK PROTECTOR | 1 |
| 18 | 17507K23900 | FILM B, TANK PROTECTOR | 1 |
| 19 | 17520K23960ZA | TANK ASSY., FUEL(WL) *TYPE5* | 1 |
| 20 | 17520K23A00ZA | TANK ASSY., FUEL(WL) *TYPE5* | 1 |
| 21 | 17520K23A00ZB | TANK ASSY., FUEL(WL) *TYPE4* | 1 |
| 22 | 17520K23A00ZC | TANK ASSY., FUEL(WL) *TYPE3* | 1 |
| 23 | 17520K23A00ZD | TANK ASSY., FUEL(WL) *TYPE2* | 1 |
| 24 | 17520K23A00ZE | TANK ASSY., FUEL(WL) *TYPE1* | 1 |
| 25 | 17520K23960ZB | TANK ASSY., FUEL(WL) *TYPE4* | 1 |
| 26 | 17520K23960ZE | TANK ASSY., FUEL(WL) *TYPE1* | 1 |
