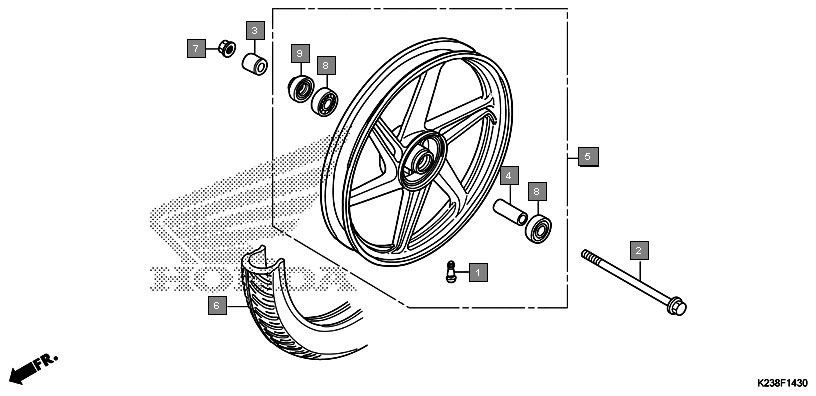

Motorcycles Dream Neo CB110CMF Frame Front wheel(cast)
Ref.No. Part No. Description Oty
1 42753KWF901 VALVE, RIM(TRITON) 1
2 44301KPL900 AXLE, FR. WHEEL 1
3 44311KSP900 COLLAR, FR. WHEEL SIDE 1
4 44650K63D01ZB WHEEL SUB ASSY., FR. *NH303M*. MAT AXIS GRAY METALLIC 1
5 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
6 44650K23910ZA WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC 1
7 44650KTE600ZA WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC 1
8 44711KRY971 TIRE, FR.(MRF) (80/100-18 M/C 47P) 1
9 44711KTE602 TIRE, FR.(TVS) (80/100-18 M/C 47P) 1
10 44711K23913 TIRE, FR.(DUNLOP) (80/100-18 M/C 47P) 1
11 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
12 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
13 91052K23903 BEARING, RADIAL BALL, 6301U (NEI) 2
14 91052K23905 BEARING, RADIAL BALL, 6301U (JTEKT) 2
15 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
16 91052KWWA81 BEARING, RADIAL BALL, 6301U (SKF) 2
17 91053KWW642 BEARING, RADIAL BALL, 6301U (FAG) 2
18 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
