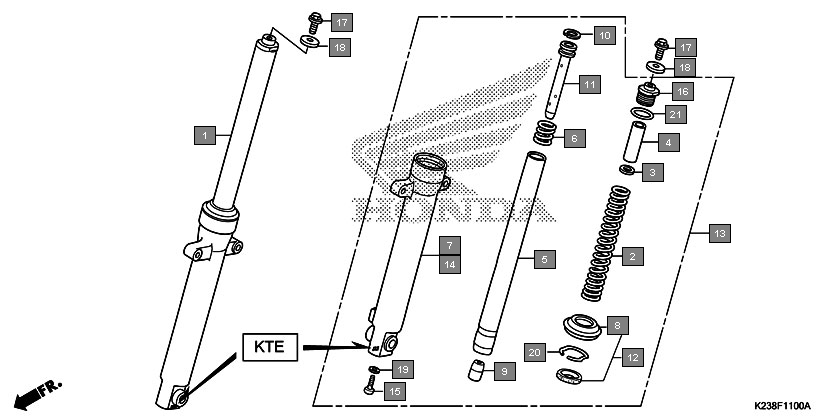

Motorcycles Dream Neo CB110CMF Frame Front fork(showa)
Ref.No. Part No. Description Oty
1 51400K23901 FORK ASSY., R. FR.(SHOWA) 1
2 51401K14901 SPRING, FR. FORK(SHOWA) 2
3 51403447731 PLATE, SPRING JOINT(SHOWA) 2
4 51403KCC901 COLLAR, SPRING(SHOWA) 2
5 51410K14901 PIPE COMP., FR. FORK(SHOWA) 2
6 51412KAG901 SPRING, REBOUND(SHOWA) 2
7 51420K23901 CASE, R. FR. BOTTOM(SHOWA) 1
8 51425961013 DUST SEAL(SHOWA) 2
9 51432KST901 PIECE, OIL LOCK 2
10 51437KVN901 RING, PISTON 2
11 51440K14901 PIPE, SEAT 2
12 51490KWS901 SEAL SET, FR. FORK 2
13 51500K23901 FORK ASSY., L. FR.(SHOWA) 1
14 51520K23901 CASE, L. FR. BOTTOM(SHOWA) 1
15 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
16 90123KSP901 BOLT A, FR. FORK 2
17 90123KRM860 BOLT, FR. FORK 2
18 90521KSP900 WASHER, 10.3MM 2
19 90544439930 PACKING(SHOWA) 2
20 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
21 91356KAG901 O-RING(SHOWA) 2
