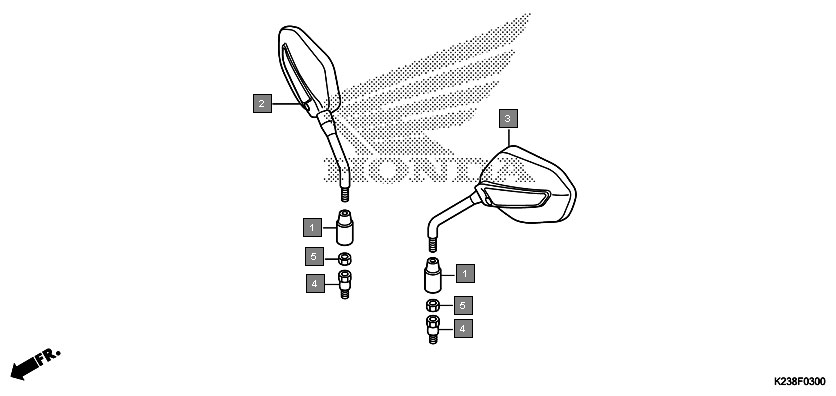

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 88114198D10 | CAP, LOCK NUT | 2 |
2 | 88210K38901ZC | MIRROR COMP., R. *NH1* BLACK | 1 |
3 | 88210K38901ZA | MIRROR COMP., R. *R232* PATRIOT RED | 1 |
4 | 88210K38901ZB | MIRROR COMP., R. *PB400R* MOROCCAN BLUE R | 1 |
5 | 88220K38901ZC | MIRROR COMP., L. *NH1* BLACK | 1 |
6 | 88220K38901ZA | MIRROR COMP., L. *R232* PATRIOT RED | 1 |
7 | 88220K38901ZB | MIRROR COMP., L. *PB400R* MOROCCAN BLUE R | 1 |
8 | 90103KTE920 | BOLT, ADAPTER, 10MM | 2 |
9 | 90201MW3620 | NUT, HEX., 10MM (LEFT HAND THREAD) | 2 |
