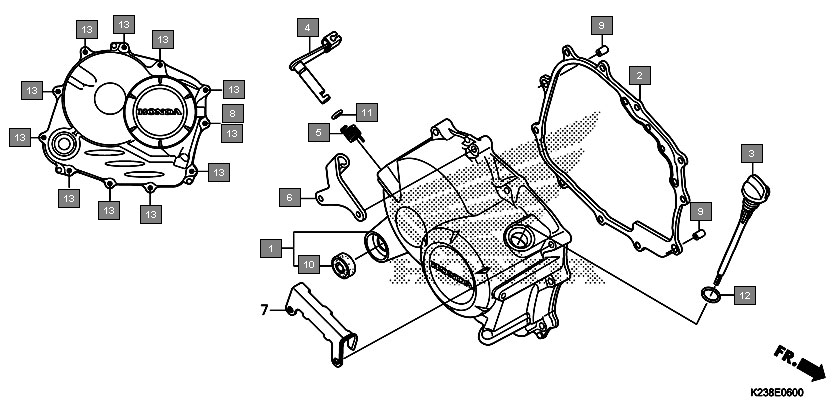

Motorcycles Dream Neo CB110CMF Engine Right crankcase cover
Ref.No. Part No. Description Oty
1 11330K14900 COVER COMP., R. CRANKCASE 1
2 11330K14960 COVER COMP., R. CRANKCASE 1
3 11394KWS901 GASKET, R. CRANKCASE COVER 1
4 15651KWS900 GAUGE, OIL LEVEL 1
5 22810K23900 LEVER COMP., CLUTCH 1
6 22815166000 SPRING, CLUTCH LEVER 1
7 22821KYY900 RECEIVER, CLUTCH CABLE 1
8 31250K14910 CLAMPER, STARTER CABLE 1
9 90463ML7000 WASHER, SEALING, 6.5MM 1
10 90702KRM840 DOWEL PIN, 8X14 2
11 91204KSP911 OIL SEAL, 16X28X7 1
12 91305GFP900 O-RING, 8.8X1.9 1
13 91307KRM840 O-RING, 18X3 1
14 960010603500 BOLT, FLANGE, 6X35 11
