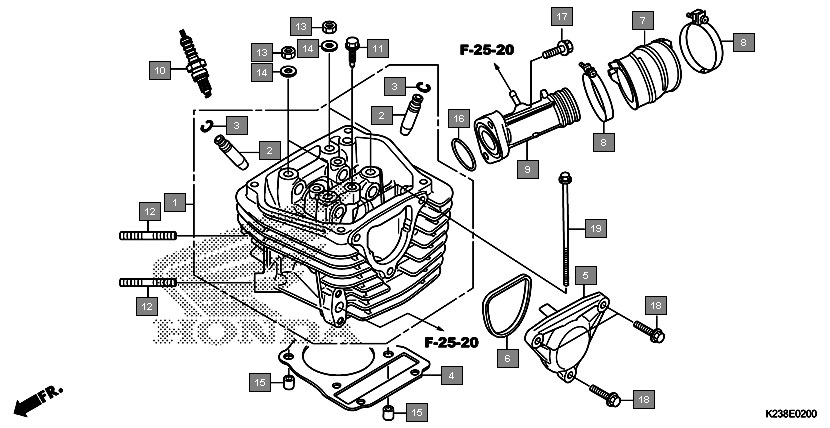

Motorcycles Dream Neo CB110CF Engine Cylinder head
Ref.No. Part No. Description Oty
1 12200K23900 HEAD COMP., CYLINDER 1
2 12204KWPP00 GUIDE, VALVE(O.S.) 2
3 12206KPL900 CLIP, VALVE GUIDE 2
4 12251KZAW01 GASKET, CYLINDER HEAD 1
5 12341K14900 COVER, CYLINDER HEAD L. SIDE 1
6 12395KYY900 GASKET, L. CYLINDER HEAD SIDE COVER 1
7 16211K23900 INSULATOR, CARBURETOR 1
8 16217K14900 BAND, INSULATOR 2
9 17110K23900 PIPE COMP A, INLET 1
10 31917KPH901 PLUG, SPARK(CPR7EA-9)(NGK) 1
11 90014KYY900 BOLT, SPECIAL, 6X21 1
12 90040KWS900 BOLT, STUD, 8X25 2
13 90201GCC000 NUT, HEX., 7MM 4
14 90401GCC000 WASHER, 7.2X16X2.5 4
15 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
16 91313KVRC00 O-RING, 27X2.0 1
17 957010602200 BOLT, FLANGE, 6X22 2
18 957020602200 BOLT, FLANGE, 6X22 2
19 960010602500 BOLT, FLANGE, 6X25 3
20 960010610000 BOLT, FLANGE, 6X100 2
