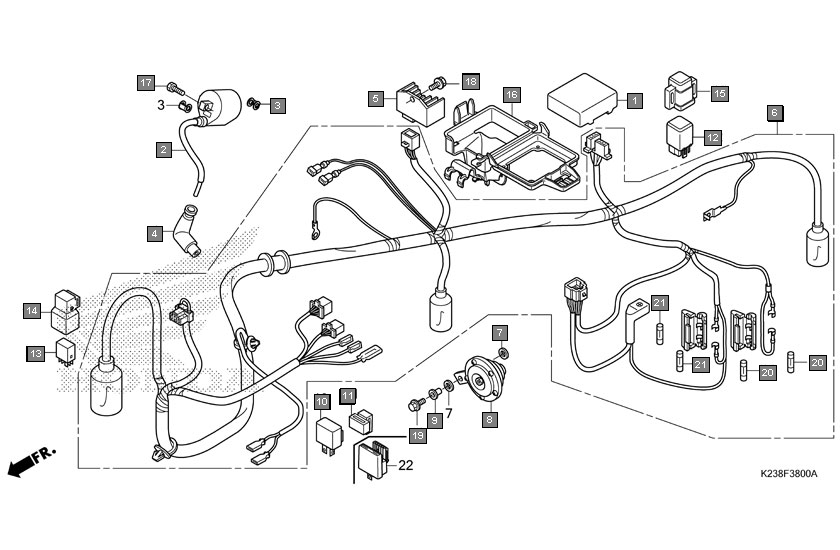

Motorcycles Dream Neo CB110CE Frame Wire harness
Ref.No. Part No. Description Oty
1 30410K23901 SPARK UNIT COMP.(DENSO) 1
2 30500K14901 COIL ASSY., IGNITION(WINGS) (W35) 1
3 30520GFM900 SPACER, IGNITION COIL 2
4 30700K14901 CAP ASSY., NOISE SUPPRESSOR (KUNAL) 1
5 31600KTE601 RECTIFIER COMP., REGULATOR (STAR ENGINEERS)6ID, 1
6 31600K14961 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
7 32100K23900 HARNESS, WIRE 1
8 32100K23920 HARNESS, WIRE 1
9 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
10 38110K14901 HORN COMP. 1
11 38117KFE701 COLLAR, HORN SETTING 1
12 38301KWS901 RELAY COMP., WINKER(MULTILINK) 1
13 38306GE7000 SUSPENSION, WINKER RELAY 1
14 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
15 38502KWA931 RELAY COMP., POWER (MICRO ISO 5P)(MULTILINK) 1
16 38506K23900 SUSPENSION, POWER RELAY 1
17 50370K23900 HOLDER, C.D.I. UNIT 1
18 92101060204J BOLT, HEX., 6X20 2
19 957010601200 BOLT, FLANGE, 6X12 1
20 957020601200 BOLT, FLANGE, 6X12 1
21 957010602000 BOLT, FLANGE, 6X20 1
22 957020602000 BOLT, FLANGE, 6X20 1
23 9820011000 FUSE A(10A) 2
24 9820011500 FUSE(15A) 2
