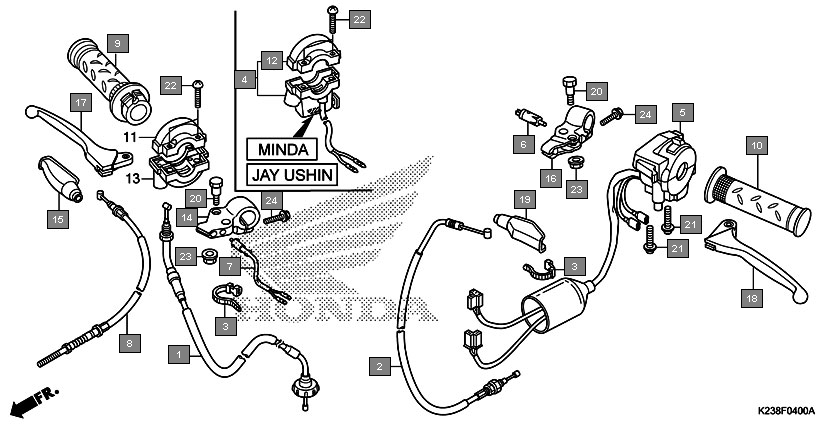

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06179K23900 | CABLE SET, THROTTLE | 1 |
2 | 06179K23940 | CABLE SET, THROTTLE | 1 |
3 | 06179K23930 | CABLE SET, THROTTLE | 1 |
4 | 22870K14901 | CABLE COMP., CLUTCH | 1 |
5 | 32161KSP920 | BAND B1, WIRE | 2 |
6 | 35200K23901 | SWITCH ASSY., WINKER (JAY USHIN) | 1 |
7 | 35200K23902 | SWITCH ASSY., WINKER(MINDA) | 1 |
8 | 35340KZAW01 | SWITCH ASSY., FR. STOP | 1 |
9 | 45450K14901 | CABLE COMP., FR. BRAKE(HI-LEX) | 1 |
10 | 45450K23902 | CABLE COMP., FR. BRAKE (SUPRAJIT) | 1 |
11 | 53140K14900 | GRIP COMP., THROTTLE | 1 |
12 | 53166KSP900 | GRIP, L. HANDLE | 1 |
13 | 53167KZAW00 | HOUSING, UPPER THROTTLE | 1 |
14 | 53168KZAW00 | HOUSING, UNDER THROTTLE | 1 |
15 | 53171K14900 | BRACKET, R. HANDLE LEVER | 1 |
16 | 53171KCC900 | COVER, R. HANDLE LEVER | 1 |
17 | 53172K14900 | BRACKET, L. HANDLE LEVER | 1 |
18 | 53175KYY900 | LEVER COMP., R. HANDLE | 1 |
19 | 53178KYY900 | LEVER COMP., L. HANDLE | 1 |
20 | 53179KTC900 | COVER, L. HANDLE LEVER | 1 |
21 | 90113KYY900 | BOLT, HANDLE LEVER PIVOT | 2 |
22 | 93500050200G | SCREW, PAN, 5X20 | 2 |
23 | 93500050220G | SCREW, PAN, 5X22 | 2 |
24 | 9405006000 | NUT, FLANGE, 6MM | 2 |
25 | 957010602200 | BOLT, FLANGE, 6X22 | 2 |
26 | 957020602200 | BOLT, FLANGE, 6X22 | 2 |
