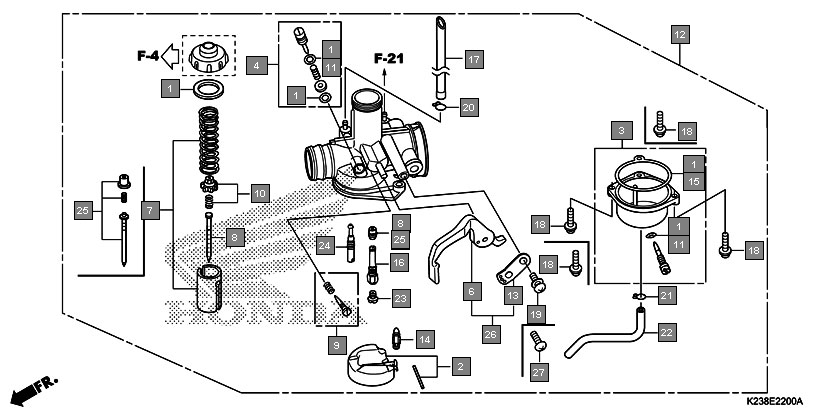

Motorcycles Dream Neo CB110CE Engine Carburetor
Ref.No. Part No. Description Oty
1 16010K23931 GASKET SET 1
2 16010K08901 GASKET SET 1
3 16013K23931 FLOAT SET 1
4 16013KRB901 FLOAT SET 1
5 16015K23931 CHAMBER SET, FLOAT 1
6 16015KZAW01 CHAMBER SET, FLOAT 1
7 16016K23931 SCREW SET A 1
8 16016KPWH01 SCREW SET 1
9 16019K14901 LEVER COMP., CHOKE 1
10 16022K23931 VALVE SET, THROTTLE 1
11 16022K23901 VALVE SET, THROTTLE 1
12 16027K23904 NEEDLE SET, JET 1
13 16027K23903 NEEDLE SET, JET 1
14 16028KYY901 SCREW SET 1
15 16028K23931 SCREW SET B 1
16 16037KPH901 PLATE SET, VALVE 1
17 16076KPL901 O-RING 2
18 16100K23931 CARBURETOR ASSY.(VM17A A) 1
19 16100K23903 CARBURETOR ASSY.(PB7EY A) 1
20 16100K23904 CARBURETOR ASSY.(PB7EY B) 1
21 16119KZAW01 PLATE, SETTING 1
22 16975K23931 PLATE, STAY 1
23 16155KVRC02 VALVE COMP., FLOAT 1
24 16155KRS861 VALVE COMP., FLOAT 1
25 16163K23931 GASKET, FLOAT CHAMBER 1
26 16163KWS901 GASKET, FLOAT CHAMBER 1
27 16165K23931 HOLDER, NEEDLE JET 1
28 16165K23901 HOLDER, NEEDLE JET 1
29 16198K23931 TUBE, AIR VENT 1
30 16198K23901 TUBE, AIR VENT 1
31 938920401608 SCREW-WASHER, 4X16 4
32 938920401808 SCREW-WASHER, 4X18 2
33 938920501218 SCREW-WASHER, 5X12 1
34 9500202100 CLIP, TUBE(B10) 1
35 9500202089 CLIP, TUBE(B8) 1
36 9500202659 CLIP, TUBE(B6.5) 1
37 950053540050 TUBE, 3.5X400(95005-35001-50M) 1
38 99131K230950 JET, MAIN, #95 1
39 99101KSS0950 JET, MAIN, #95 1
40 16180K23931 JET, SLOW, #12.5 1
41 99103KPH0350 JET, SLOW, #35 1
42 16012K23931 NEEDLE SET, JET 1
43 16025K23931 LEVER SET, CHOKE 1
44 93500050101H SCREW, PAN, 5X10 1
