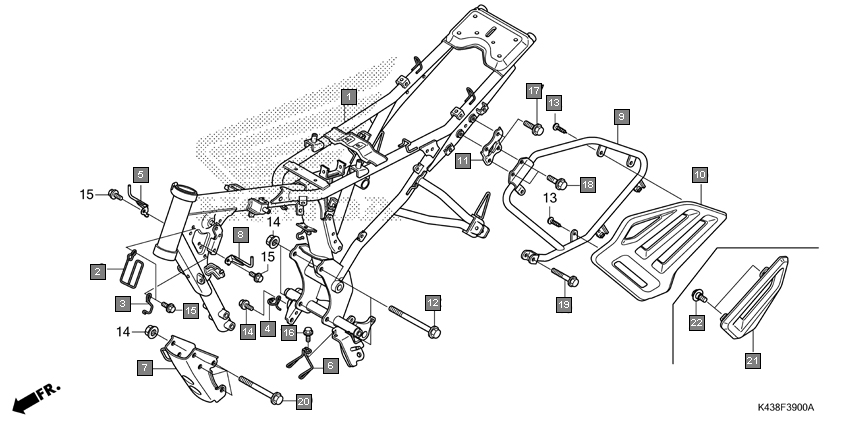

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50100K43910 | BODY COMP., FRAME | 1 |
2 | 50100K43900 | BODY COMP., FRAME | 1 |
3 | 50211K43900 | GUIDE, HARNESS | 1 |
4 | 50212K43900 | GUIDE, CLUTCH CABLE | 1 |
5 | 50219K43900 | GUIDE B, AIR VENT | 1 |
6 | 50295K43900 | STAY, R. INNER COVER | 1 |
7 | 50297K43900 | GUIDE, DRAIN TUBE | 1 |
8 | 50351K43900 | PLATE COMP., FR. ENGINE HANGER | 1 |
9 | 50395K43900 | STAY, L. INNER COVER | 1 |
10 | 51103K43900 | GUARD, SARI | 1 |
11 | 51104K43900 | COVER, SARI GUARD | 1 |
12 | 51105K43900 | PLATE, SARI GUARD | 1 |
13 | 90019399010 | BOLT, FLANGE, 10X110 | 2 |
14 | 9390325280 | SCREW, TAPPING, 5X12 | 4 |
15 | 9405010000 | NUT, FLANGE, 10MM | 6 |
16 | 957010601207 | BOLT, FLANGE, 6X12 | 4 |
17 | 957010601607 | BOLT, FLANGE, 6X16 | 2 |
18 | 957010801207 | BOLT, FLANGE, 8X12 | 2 |
19 | 957010801407 | BOLT, FLANGE, 8X14 | 2 |
20 | 957010804007 | BOLT, FLANGE, 8X40 | 1 |
21 | 958011009000 | BOLT, FLANGE, 10X90 | 4 |
