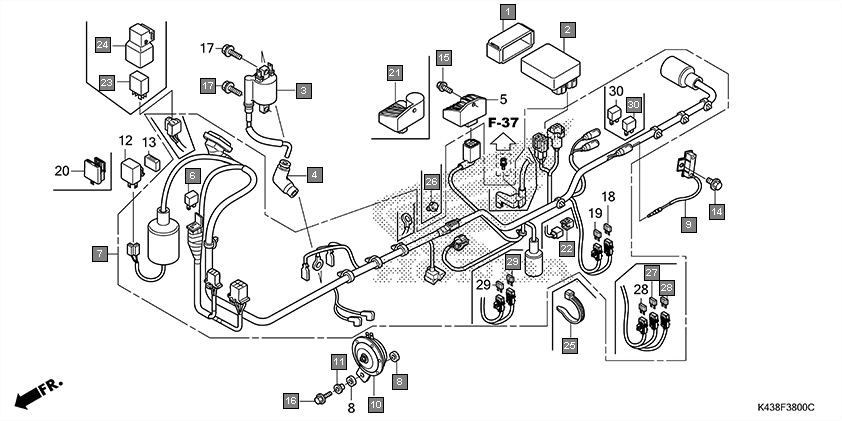

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 30401KWPD21 | CUSHION, C.D.I. UNIT (SHINDENGEN) | 1 |
2 | 30410K43901 | C.D.I. UNIT(DC) | 1 |
3 | 30500K38901 | COIL ASSY., IGNITION | 1 |
4 | 30700KZAW01 | CAP ASSY., NOISE SUPPRESSOR | 1 |
5 | 31600K14961 | RECTIFIER COMP., REGULATE(STAR ENGINEERS) | 1 |
6 | 31700124008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 |
7 | 32100K43900 | HARNESS, WIRE | 1 |
8 | 33714K38900 | RUBBER, TAILLIGHT BRACKET | 2 |
9 | 35400K43901 | RESISTOR COMP. | 1 |
10 | 38110K43901 | HORN COMP.(HIGH) | 1 |
11 | 38117KFE701 | COLLAR, HORN SETTING | 1 |
12 | 38301K14962 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 |
13 | 38306K38901 | SUSPENSION, WINKER RELAY (STAR ENGINEERS) | 1 |
14 | 957010601000 | BOLT, FLANGE, 6X10 | 1 |
15 | 957010601600 | BOLT, FLANGE, 6X16 | 1 |
16 | 957010602008 | BOLT, FLANGE, 6X20 | 1 |
17 | 960010602000 | BOLT, FLANGE, 6X20 | 2 |
18 | 9820040500 | FUSE, MINI(5A) | 1 |
19 | 9820041500 | FUSE, MINI(15A) | 1 |
