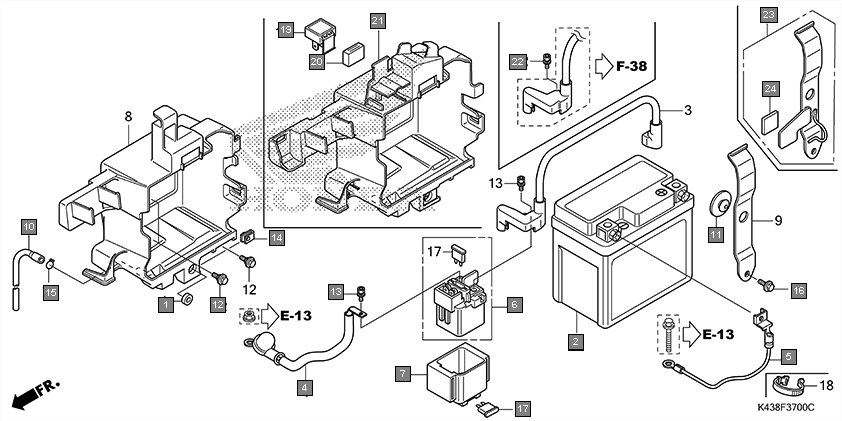

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17223KVX600 | COLLAR, AIR CLEANER | 1 |
2 | 31500KRP801 | BATTERY(ETZ5-BS)(EXIDE) | 1 |
3 | 31500KRPN41 | BATTERY(ETZ5)(EXIDE) | 1 |
4 | 32401K43900 | CABLE, STARTER MAGNETIC BATTERY | 1 |
5 | 32410K43900 | CABLE, STARTER MOTOR | 1 |
6 | 32601K38900 | CABLE, BATTERY EARTH | 1 |
7 | 35850K38901 | SWITCH ASSY., STARTER MAGNETIC | 1 |
8 | 35856K43900 | RUBBER, SHOCK | 1 |
9 | 50384K43900 | BOX, BATTERY | 1 |
10 | 50386K43900 | BAND, BATTERY | 1 |
11 | 50388K38900 | TUBE, BATTERY BOX | 1 |
12 | 83618323000 | RUBBER, BATTERY BOX | 1 |
13 | 90111162000 | BOLT, FLANGE, 6MM | 3 |
14 | 90111MR5000 | BOLT, SOCKET, 5X9 | 2 |
15 | 90311MT3000 | NUT, CLIP, 6MM | 1 |
16 | 90651MK3780 | CLIP, TUBE(B12.5) | 1 |
17 | 957010601600 | BOLT, FLANGE, 6X16 | 1 |
18 | 9820032000 | FUSE, BLADE(20A) | 2 |
